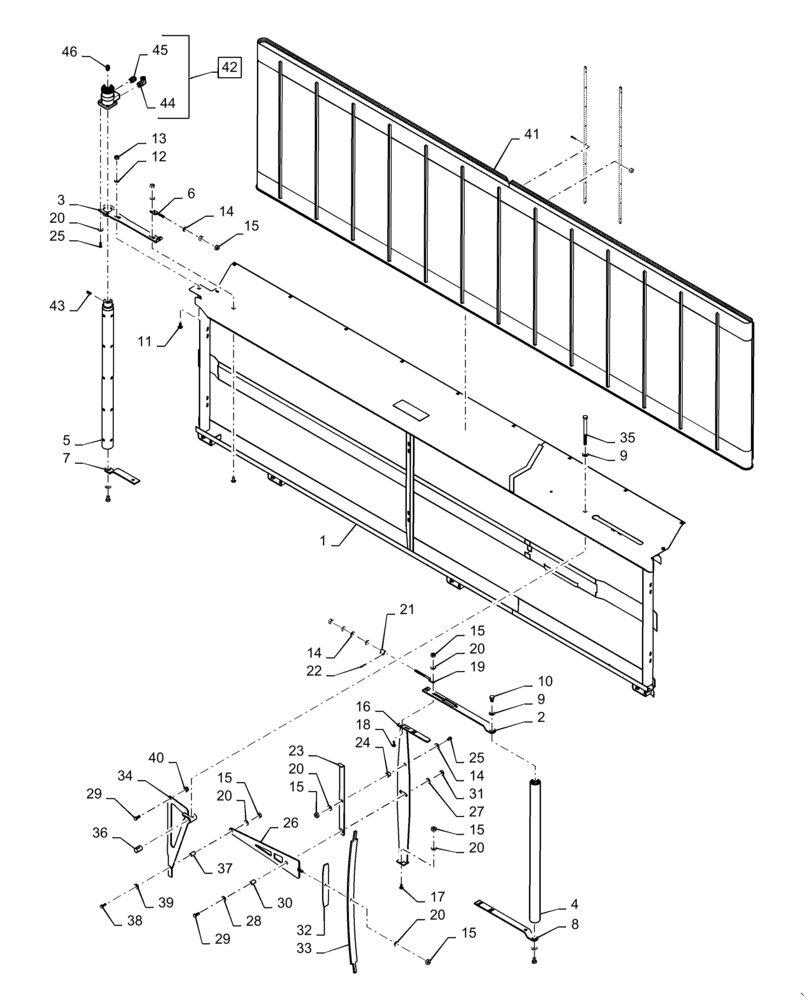

Запчасти Case IH 3162 (58.115.03) - TENSIONER, ASSY, RH, 35FT (58) - ATTACHMENTS/HEADERS

1

87478997

CONVEYOR

Assy, RH 35 ft

1шт.

2

87477203

ARM

Left Rear

1шт.

3

87478446

ARM

Right Rear

1шт.

4

87701210

ROLLER,60.33mm OD x 996mm L

Assy, Idler

1шт.

5

84476056

ROLLER,66.3mm OD x 1051mm L

Assy, Drive

1шт.

6

87473099

ADJUSTER

Drive Roller

1шт.

7

47478705

ARM

Inner

1шт.

8

87478432

ARM

Outer

1шт.

9

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

10

15980321

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

3шт.

11

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

13

9706685

NUT,M12 x 1.75, Cl 8

2шт.

14

140017

WASHER,M10 x 20mm OD x 2mm Thk

5шт.

15

100016

NUT,M10 x 1.5, Cl 8

9шт.

16

87478448

STABILIZER

RH

1шт.

17

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

18

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

19

87473100

ROD

Threaded

1шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

21

87477205

BRACKET

Assy

1шт.

22

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

23

87478996

INDICATOR

Assy

1шт.

24

626698

SPACER

1шт.

25

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

5шт.

26

87478451

SUPPORT

1шт.

27

87529126

WASHER,0.53" ID x 1.75" OD x 0.1" Thk

1шт.

28

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

29

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

30

87305403

SPACER,13.51mm ID x 19.05mm OD x 17.5mm Thk

1шт.

31

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

32

87491665

LEAF SPRING

Short

1шт.

33

87491663

LEAF SPRING

Long

1шт.

34

47422735

BELLCRANK

RH

1шт.

35

9814566

BOLT,Hex, M16 x 2 x 190mm, Cl 8.8, Full Thd

1шт.

36

87477200

NUT,Special

1шт.

37

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

1шт.

38

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

39

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

40

100038

NUT,M12 x 1.75, Cl 8

1шт.

41

47371568

DRAPER

Assy, Belt

1шт.

42

84393903

HYDRAULIC MOTOR,41CC

Also Order 44 - 46

1шт.

43

80425

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

2шт.

44

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

1шт.

45

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

46

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.
