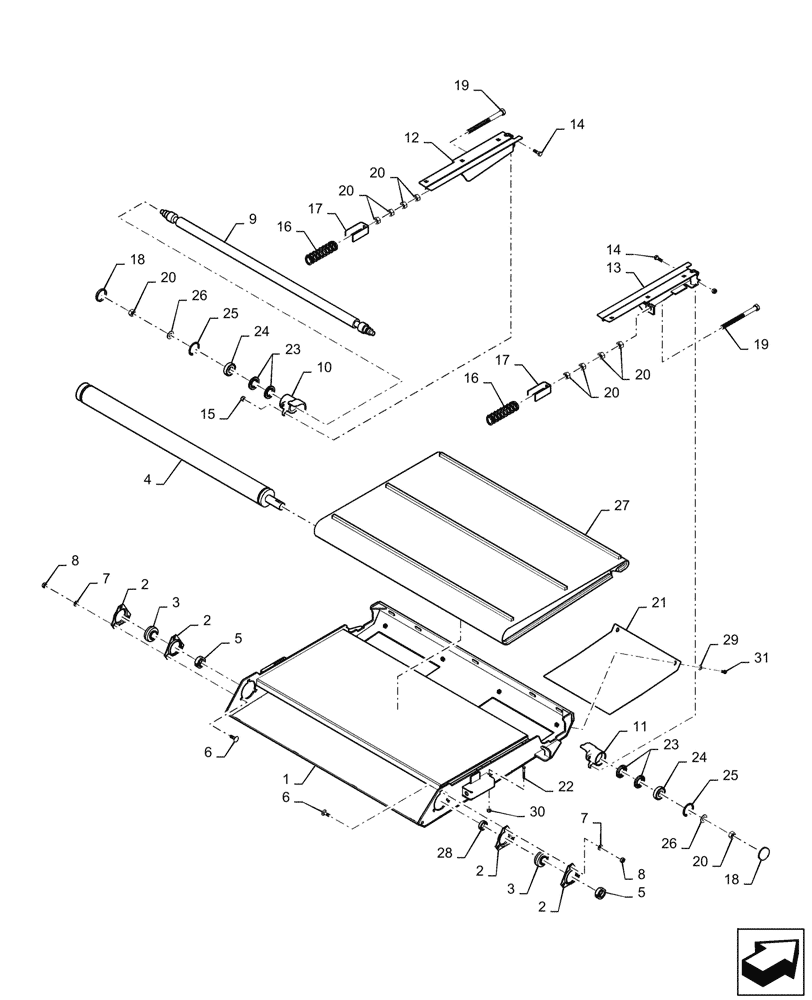

Запчасти Case IH 3162 (58.115.02[03]) - FEEDER, ASSY, RH (58) - ATTACHMENTS/HEADERS

1

47541221

FEEDER

RH

1шт.

2

87758678

FLANGE

4шт.

3

63265

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

2шт.

4

84163554

ROLLER SHAFT

RH

1шт.

5

63266

COLLAR,30.187mm ID x 44.83mm OD x 16.26mm W

2шт.

6

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

6шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

8

100016

NUT,M10 x 1.5, Cl 8

6шт.

9

87705513

SHAFT

Roller

1шт.

10

87470513

HOUSING

LH

1шт.

11

87470515

HOUSING

RH

1шт.

12

84288707

ARM

LH

1шт.

13

84288712

ARM

RH

1шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

16

84269942

TENSION SPRING

2шт.

17

84151895

RETAINER

2шт.

18

84190205

DUST CAP

2шт.

19

9814566

BOLT,Hex, M16 x 2 x 190mm, Cl 8.8, Full Thd

2шт.

20

100020

NUT,M16 x 2.0, Cl 8

10шт.

21

47525970

COVER

2шт.

22

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

23

87470518

SEAL,28.57mm ID x 51.99mm OD x 6.35mm Thk

4шт.

24

84569437

BALL BEARING,25mm ID x 52.01mm OD x 15.12mm W

2шт.

25

370011

CIRCLIP,M52 x 2mm Thk, Internal

2шт.

26

86632590

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

27

47932768

DRAPER

Infeed Flex

1шт.

27a

47371025

SLAT

Connector Kit, Tube Included

1шт.

28

684881

SPACER

1шт.

29

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

30

353308

NUT,M6 x 1.0, Cl 8

2шт.

31

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.
