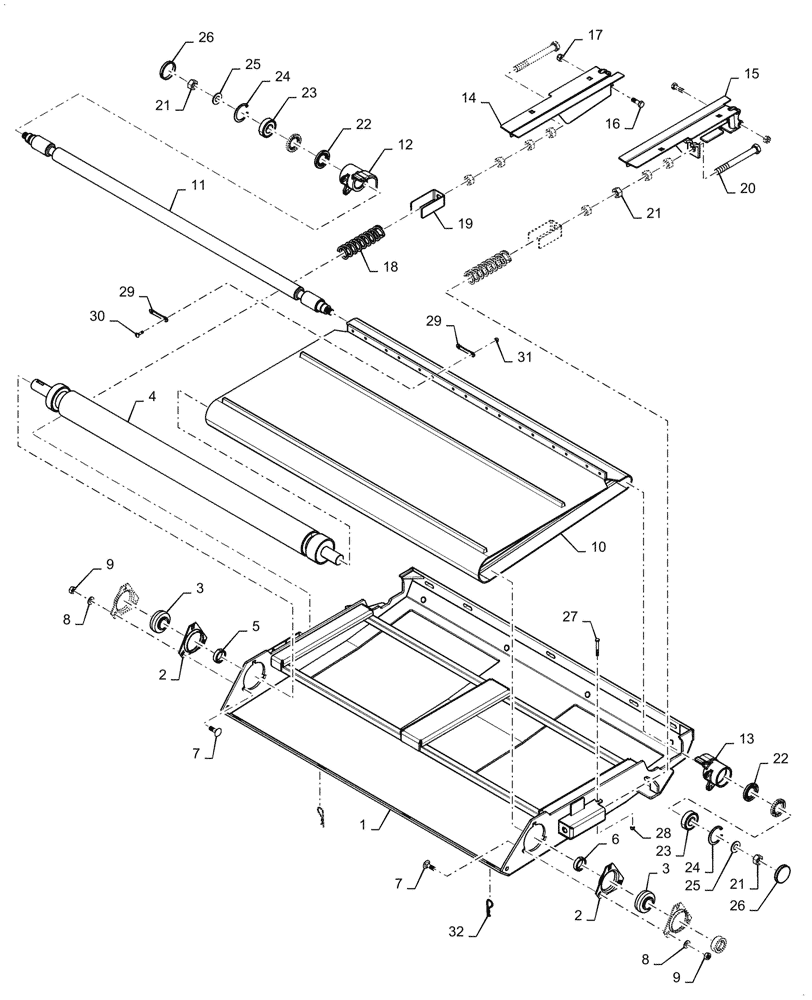

Запчасти Case IH 3162 (58.115.02[03]) - FEEDER ASSY, RH, ASN YHH051300 (58) - ATTACHMENTS/HEADERS

1

47901712

FEEDER

RH

1шт.

2

87758678

FLANGE

4шт.

3

63265

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

2шт.

4

47978808

ROLLER SHAFT

RH

1шт.

5

63266

COLLAR,30.187mm ID x 44.83mm OD x 16.26mm W

2шт.

6

684881

SPACER

1шт.

7

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

6шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

9

100016

NUT,M10 x 1.5, Cl 8

6шт.

10

47998910

DRAPER

Infeed, Flex - MY17, Start Serial: HCCBDF45TGCC00482

1шт.

11

47899160

ROLLER SHAFT

1шт.

12

87470513

HOUSING

LH

1шт.

13

87470515

HOUSING

RH

1шт.

14

84288707

ARM

LH

1шт.

15

84288712

ARM

RH

1шт.

16

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

18

84269942

TENSION SPRING

Assy

2шт.

19

84151895

RETAINER

2шт.

20

9814566

BOLT,Hex, M16 x 2 x 190mm, Cl 8.8, Full Thd

2шт.

21

100020

NUT,M16 x 2.0, Cl 8

10шт.

22

87470518

SEAL,28.57mm ID x 51.99mm OD x 6.35mm Thk

4шт.

23

84569437

BALL BEARING,25mm ID x 52.01mm OD x 15.12mm W

2шт.

24

370011

CIRCLIP,M52 x 2mm Thk, Internal

2шт.

25

86632590

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

26

84190205

DUST CAP

2шт.

27

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

28

353308

NUT,M6 x 1.0, Cl 8

2шт.

29

48005531

STRAP

Draper Slice

16шт.

30

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

16шт.

31

84429102

LOCK NUT

16шт.

32

129365

COTTER PIN

2шт.
