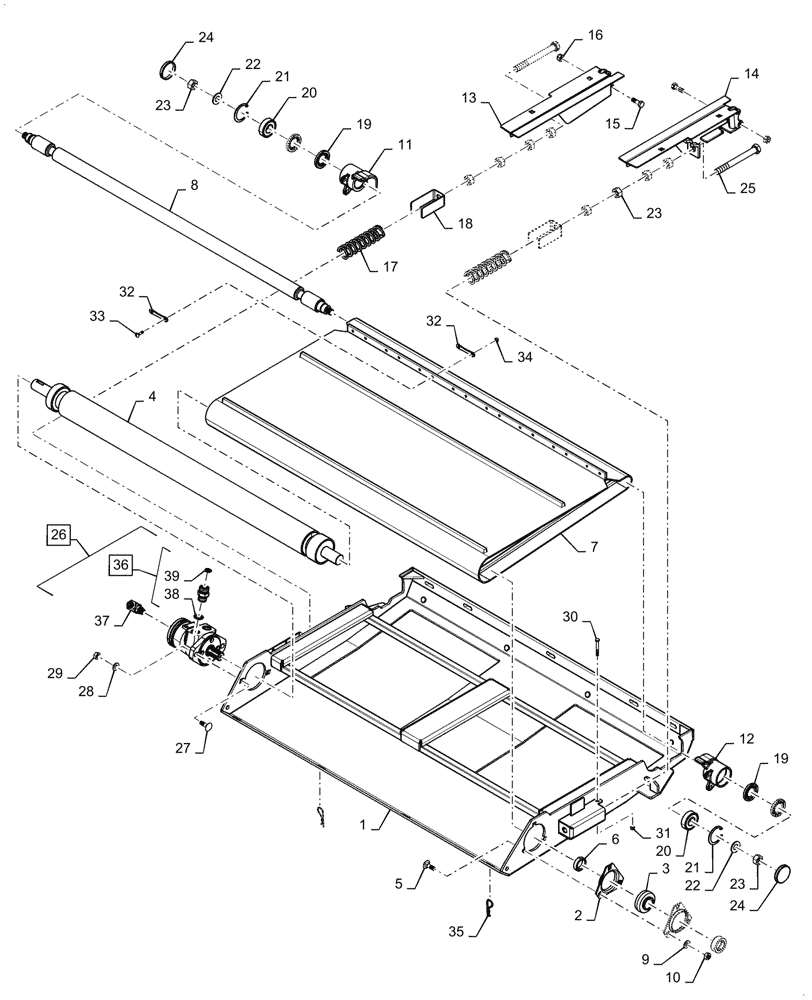

Запчасти Case IH 3162 (58.115.02[02]) - FEEDER ASSY, LH, ASN YHH051300 (58) - ATTACHMENTS/HEADERS

1

47901359

FEEDER

LH

1шт.

2

87758678

FLANGE

2шт.

3

63265

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

1шт.

4

47978878

ROLLER SHAFT

LH

1шт.

5

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

3шт.

6

63266

COLLAR,30.187mm ID x 44.83mm OD x 16.26mm W

1шт.

7

47998910

DRAPER

Infeed, Flex - MY17, Start Serial: HCCBDF45TGCC00482

1шт.

8

47899160

ROLLER SHAFT

1шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

10

100016

NUT,M10 x 1.5, Cl 8

3шт.

11

87470513

HOUSING

LH

1шт.

12

87470515

HOUSING

RH

1шт.

13

84288707

ARM

LH

1шт.

14

84288712

ARM

RH

1шт.

15

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

16

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

17

84269942

TENSION SPRING

Assy

2шт.

18

84151895

RETAINER

2шт.

19

87470518

SEAL,28.57mm ID x 51.99mm OD x 6.35mm Thk

4шт.

20

84569437

BALL BEARING,25mm ID x 52.01mm OD x 15.12mm W

2шт.

21

370011

CIRCLIP,M52 x 2mm Thk, Internal

2шт.

22

86632590

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

23

100020

NUT,M16 x 2.0, Cl 8

10шт.

24

84190205

DUST CAP

2шт.

25

9814566

BOLT,Hex, M16 x 2 x 190mm, Cl 8.8, Full Thd

2шт.

26

84393904

HYDRAULIC MOTOR,46CC

Incl 36 - 39

1шт.

27

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

29

9706685

NUT,M12 x 1.75, Cl 8

2шт.

30

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

31

353308

NUT,M6 x 1.0, Cl 8

2шт.

32

48005531

STRAP

Draper Slice

16шт.

33

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

16шт.

34

84429102

LOCK NUT

16шт.

35

129365

COTTER PIN

2шт.

36

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 38, 39

2шт.

37

84368922

BRANCH TEE,11/16"-16 ORFS x 9/16" ORB

1шт.

38

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

39

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.
