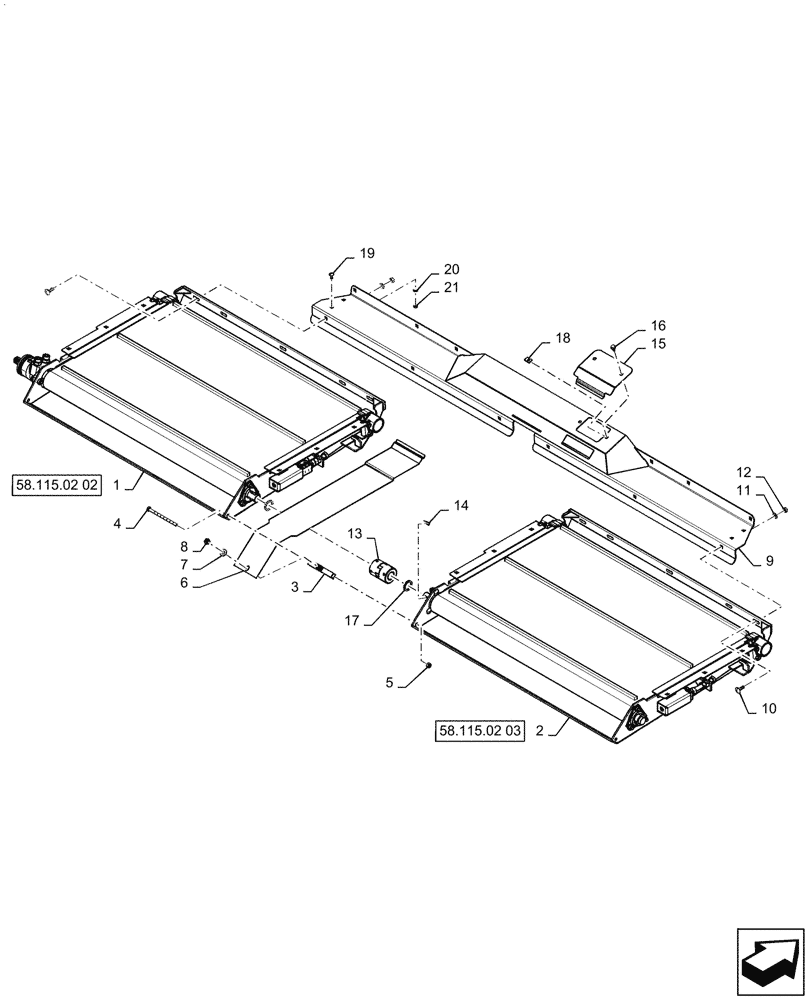

Запчасти Case IH 3162 (58.115.02[01]) - FEEDER ASSY, ASN YHH051300 (58) - ATTACHMENTS/HEADERS

1

NSS

NOT SOLD SEPARAT

Feeder Assy, LH

1шт.

2

NSS

NOT SOLD SEPARAT

Feeder Assy, RH

1шт.

3

87749823

TUBE

1шт.

4

86624000

BOLT,M10 x 1.5 x 156.58mm, Cl 8.8

1шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

6

84538158

SHIELD

1шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

8

9706685

NUT,M12 x 1.75, Cl 8

1шт.

9

84324157

COVER ASSY

1шт.

10

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

6шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

12

100016

NUT,M10 x 1.5, Cl 8

6шт.

13

84249459

FLEXIBLE COUPLING

1шт.

14

80768

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

15

47417589

ACCESS COVER

Flex

1шт.

16

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

17

164995

WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk

2шт.

18

833-40408

NUT,M8, U

2шт.

19

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

21

9706690

NUT,M8 x 1.25, Cl 8

4шт.
