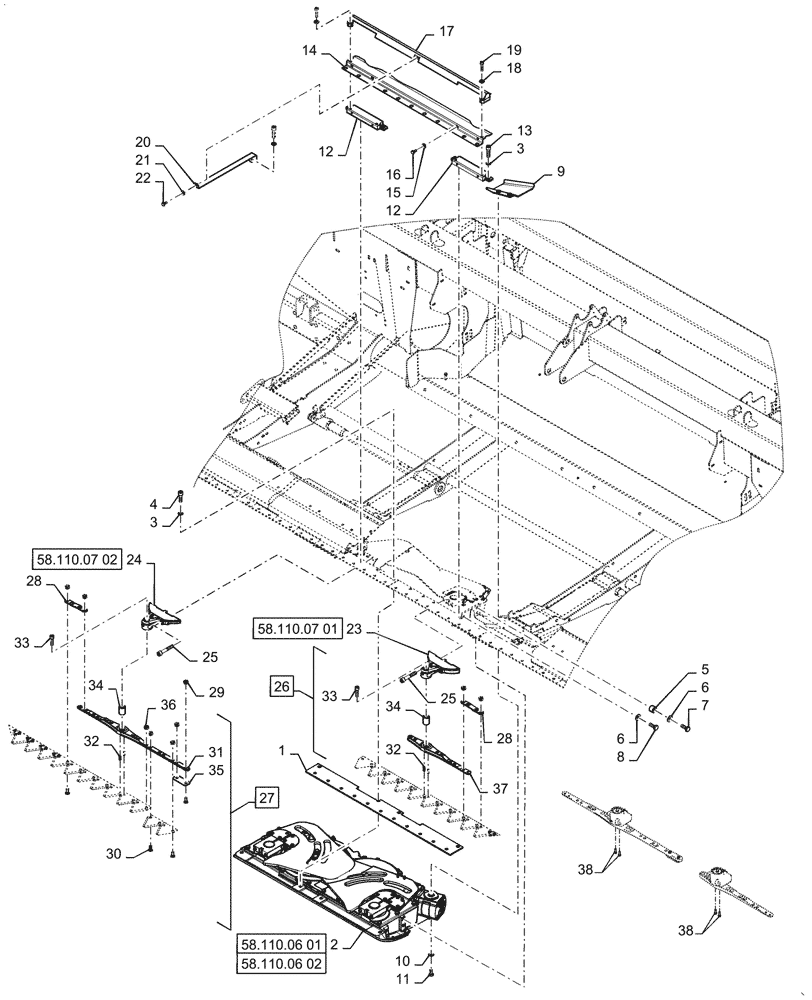

Запчасти Case IH 3162 (58.110.09[01]) - CUTTERBAR, ASSY, COMMON FLEX (58) - ATTACHMENTS/HEADERS

1

84325448

MOUNTING PLATE

1шт.

2

NSS

NOT SOLD SEPARAT

Gearbox, Center Knife

1шт.

3

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

4шт.

4

14422120

HEX SOC SCREW,M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

5

86622574

SPACER

2шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

7

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

8

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

9

47690260

SHIELD

Motor, Start Serial: YEH050000

1шт.

9

84418960

SHIELD

Motor, Serial Range: -YEH049999

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

11

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

12

47550259

BLOCK

Lower

2шт.

13

14422231

HEX SOC SCREW,M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

14

47553644

FLOOR

Plate

1шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

16

86508616

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

17

47547951

SHIELD

Upper

1шт.

18

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

19

86531614

HEX SOC SCREW,M8 x 35mm, Cl 12.9

2шт.

20

47553665

BRACKET

Flap

1шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

22

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

23

47553657

ARM

Assy, Knife, Turret, LH

1шт.

23

48048755

ARM

Assy, Knife, Turret, LH, Start Serial: YHH051300

1шт.

24

47553648

ARM

Assy, Knife, Turret, RH

1шт.

24

48048758

ARM

Assy, Knife, Turret, RH, Start Serial: YHH051300

1шт.

25

84319918

HEX SOC SCREW,M12 x 1.75 x 70mm, Cl 10.9

4шт.

25

87742362

BOLT,M12 x 130mm, Cl 10.9

, Start Serial: YHH051300

4шт.

26

47416964

KNIFE ASSY

Assy, LH, Incl 32 - 34, 37

1шт.

27

47416963

KNIFE HEAD

Assy, RH, Incl 30 - 36

1шт.

28

84423401

STRAP

Reinforcing Knife

2шт.

29

84429102

LOCK NUT

25шт.

30

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

Overlap Knife Section

7шт.

31

47997810

KNIFE HEAD

RH Knife Head, Incl In 27

1шт.

31

48050318

RH, Start Serial: YHH051300

KNIFE HEAD

1шт.

32

64780

DOWEL,1/4" x 1/2", HDN

2шт.

33

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

1шт.

34

47415563

PIN,25mm OD x 32.5mm L

Pin

1шт.

34a

47835891

CAP

White Seal

2шт.

35

47415343

PLATE

Knife

1шт.

36

84429102

LOCK NUT

2шт.

37

47980887

KNIFE HEAD

RH, Incl In 26

1шт.

37

47980095

KNIFE HEAD

LH, Incl In 26

1шт.

37

48050319

LH, Start Serial: YHH051300

KNIFE HEAD

1шт.

38

806-6016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

4шт.
