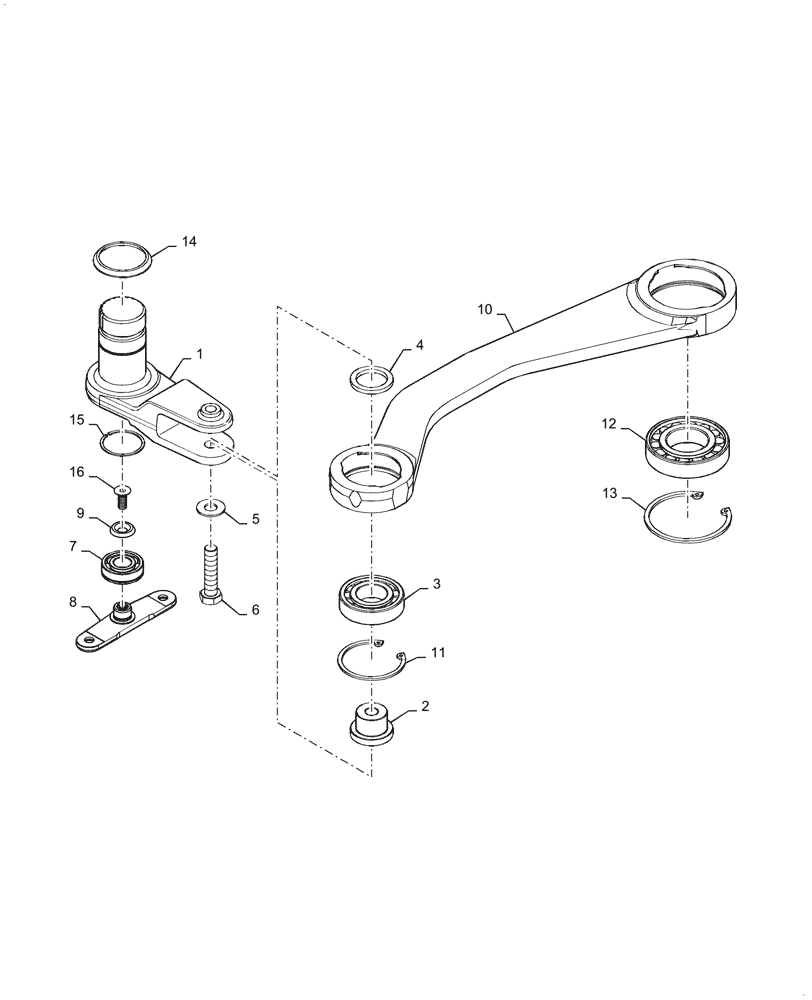

Запчасти Case IH 3162 (58.110.08[02]) - ARM ASSY, ASN YHH051300 (58) - ATTACHMENTS/HEADERS

1

47767739

ARM

1шт.

2

84306276

SPACER

Shouldered

1шт.

3

84312854

ROLLER BEARING

Cylindrical

1шт.

4

84345404

SPACER

1шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

6

87021825

BOLT,Hex, M12 x 55mm, Cl 10.9

1шт.

7

47997688

BALL BEARING

1шт.

8

47849438

BRACKET

Bearing Bolted

1шт.

9

47849442

BRACKET

Washer

1шт.

10

47468740

ARM

Connecting

1шт.

11

370012

RING,M62, Internal

1шт.

12

5147070

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

13

300633

SNAP RING,M80, Internal

1шт.

14

84345400

SPACER,45.05mm ID x 56mm OD x 5mm L

1шт.

15

5168195

SNAP RING,1.5mm Thk, Ext

1шт.

16

14442021

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 8.8

1шт.
