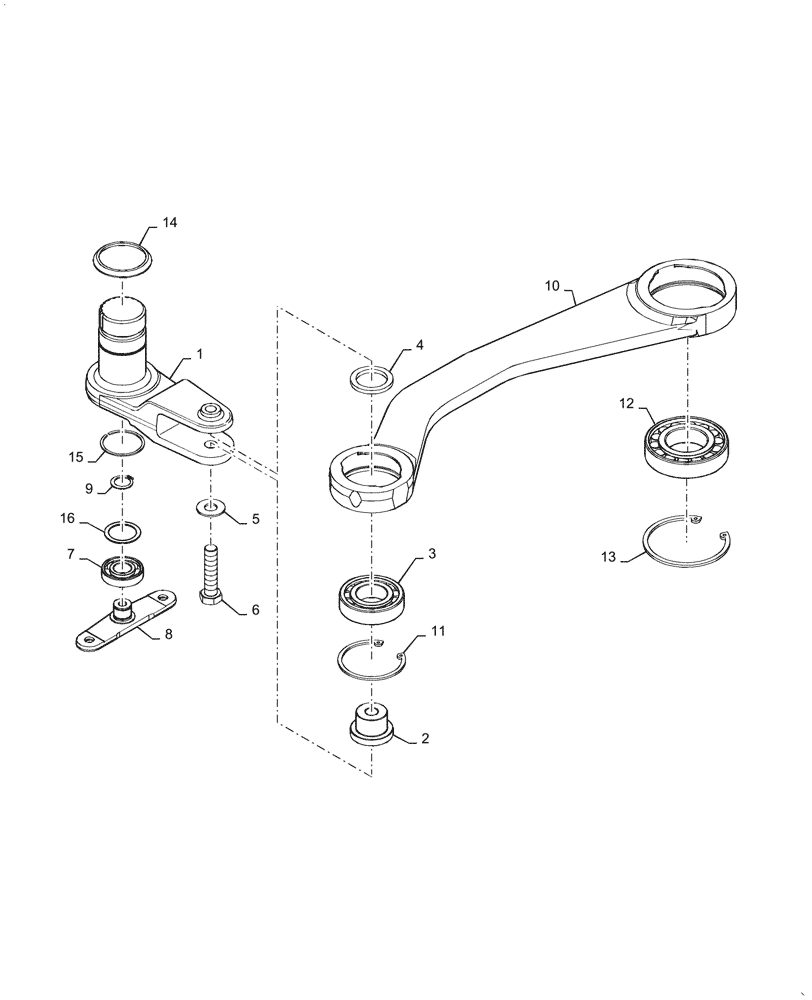

Запчасти Case IH 3162 (58.110.08[01]) - ARM ASSY, BTW SERIAL YDH030601 - YHH051299 (58) - ATTACHMENTS/HEADERS

1

84499881

ARM

Machined, Low Bearing

1шт.

1a

84312461

NEEDLE BEARING

1шт.

1b

84345400

SPACER,45.05mm ID x 56mm OD x 5mm L

1шт.

2

84306276

SPACER

Shouldered

1шт.

3

84312854

ROLLER BEARING

1шт.

4

84345404

SPACER

1шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

6

87021825

BOLT,Hex, M12 x 55mm, Cl 10.9

1шт.

7

84521602

BALL BEARING

1шт.

8

84539666

BRACKET

Bearing

1шт.

9

370016

SNAP RING,M17, Ext

1шт.

10

84306293

ARM

Connecting

1шт.

11

370012

RING,M62, Internal

1шт.

12

5147070

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

13

300633

SNAP RING,M80, Internal

1шт.

14

84345400

SPACER,45.05mm ID x 56mm OD x 5mm L

1шт.

15

84570510

SNAP RING

1шт.

16

47745649

SHIM KIT

Incl 16a - 16d

1шт.

16a

47745674

SHIM

17.2 x 24.9 x 0.30

1шт.

16b

47745675

SHIM

17.2 x 24.9 x 0.35

1шт.

16c

47745676

SHIM

17.2 x 24.9 x 0.40

1шт.

16d

47745678

SHIM

17.2 x 24.9 x 0.5

1шт.
