(58.110.04[04]) - RH KNIFE ASSY, 45FT SMALL GRAIN, ASN YHH051300

Запчасти Case IH 3162 (58.110.04[04]) - RH KNIFE ASSY, 45FT SMALL GRAIN, ASN YHH051300 (58) - ATTACHMENTS/HEADERS

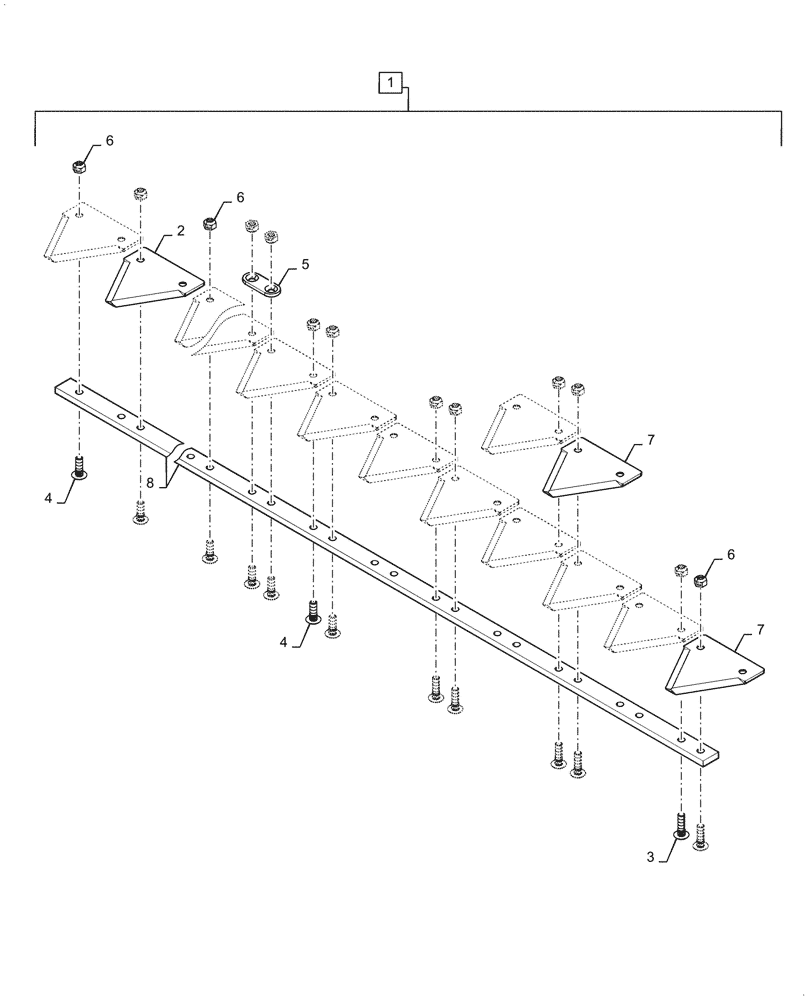

Схема запчастей Case IH 3162 - (58.110.04[04]) - RH KNIFE ASSY, 45FT SMALL GRAIN, ASN YHH051300 (58) - ATTACHMENTS/HEADERS
8
5
6
6
3
4
4
2
1
7
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47997929

KNIFE ASSY

RH 45FT Small Grain, Incl 2 - 8

1шт.

2

48041746

KNIFE SECTION

OS, BT, STD AT

88шт.

3

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

10шт.

4

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

165шт.

5

321848A1

KNIFE CLIP

Strap, Reinforcing 3"

16шт.

6

84429102

LOCK NUT

175шт.

7

48041748

KNIFE SECTION

OS, BT CSB AT

3шт.

8

NSS

NOT SOLD SEPARAT

RH Knife Back

1шт.
