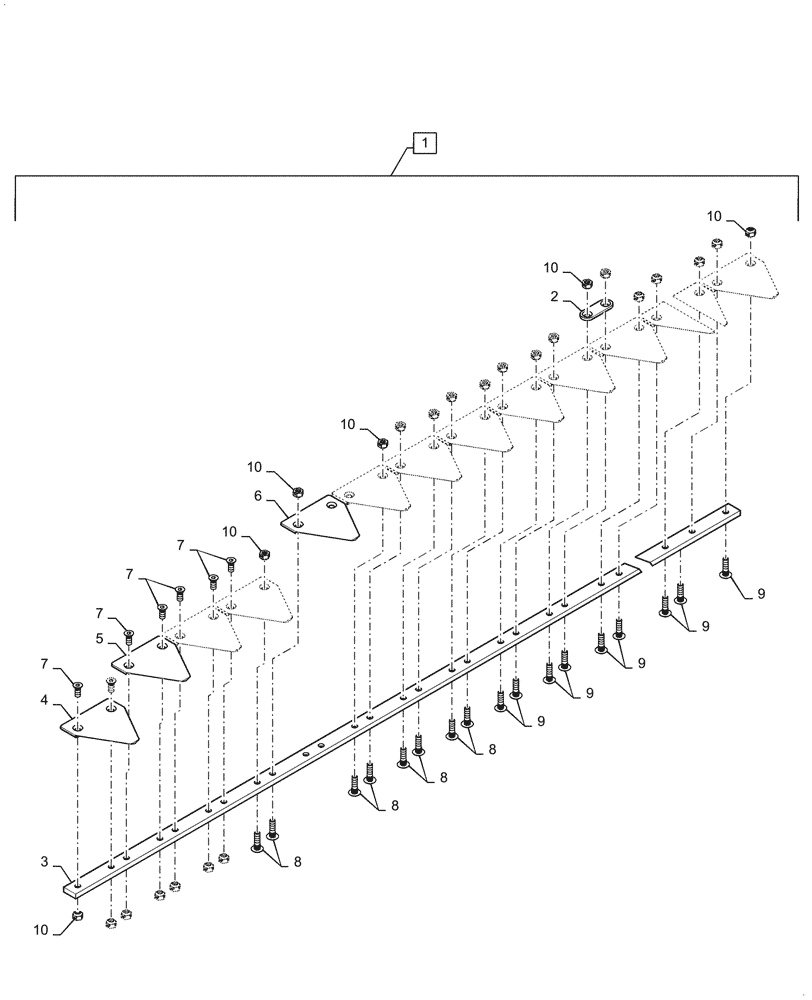

Запчасти Case IH 3152 (58.110.04[03]) - LH KNIFE ASSY, 35FT SMALL GRAIN, ASN YHH051300 (58) - ATTACHMENTS/HEADERS

1

47997910

KNIFE ASSY

LH 35FT Small Grain, Incl 2 - 10

1шт.

2

321848A1

KNIFE CLIP

Strap, Reinforcing 3"

11шт.

3

NSS

NOT SOLD SEPARAT

LH Knife Back

1шт.

4

48041748

KNIFE SECTION

OS, BT CSB AT

1шт.

5

48041747

KNIFE SECTION

OS, BT CST AT

3шт.

6

48041746

KNIFE SECTION

OS, BT, STD AT

68шт.

7

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

7шт.

8

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

10шт.

9

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

125шт.

10

84429102

LOCK NUT

142шт.
