(58.110.04[03]) - LH KNIFE ASSY, 25FT SMALL GRAIN, ASN YHH051300

Запчасти Case IH 3152 (58.110.04[03]) - LH KNIFE ASSY, 25FT SMALL GRAIN, ASN YHH051300 (58) - ATTACHMENTS/HEADERS

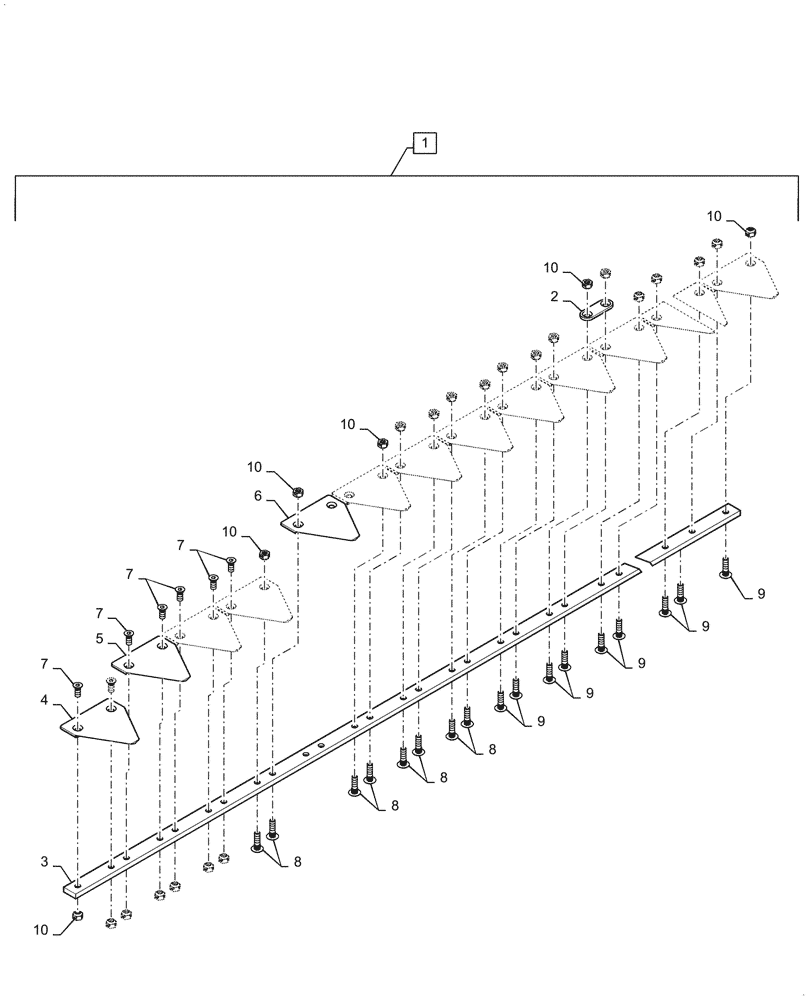

Схема запчастей Case IH 3152 - (58.110.04[03]) - LH KNIFE ASSY, 25FT SMALL GRAIN, ASN YHH051300 (58) - ATTACHMENTS/HEADERS
4
9
8
7
9
7
8
10
10
6
3
10
9
5
10
7
10
1
8
10
2
7
8
9
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47997900

KNIFE ASSY

LH 25FT Small Grain, Incl 2 - 10

1шт.

2

321848A1

KNIFE CLIP

Strap, Reinforcing 3"

5шт.

3

NSS

NOT SOLD SEPARAT

LH Knife Back

1шт.

4

48041748

KNIFE SECTION

OS, BT CSB AT

1шт.

5

48041747

KNIFE SECTION

OS, BT CST AT

3шт.

6

48041746

KNIFE SECTION

OS, BT, STD AT

48шт.

7

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

7шт.

8

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

10шт.

9

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

85шт.

10

84429102

LOCK NUT

102шт.
