(58.110.04[02]) - RH KNIFE ASSY, 25FT SOYBEAN, ASN YHH051300

Запчасти Case IH 3152 (58.110.04[02]) - RH KNIFE ASSY, 25FT SOYBEAN, ASN YHH051300 (58) - ATTACHMENTS/HEADERS

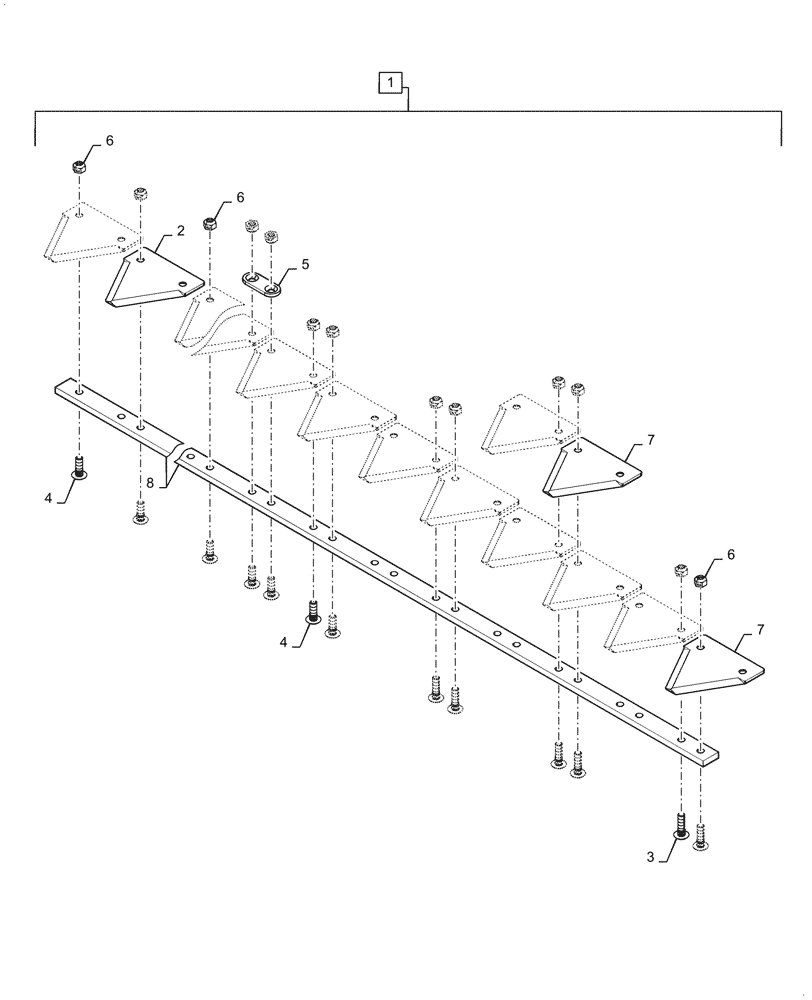

Схема запчастей Case IH 3152 - (58.110.04[02]) - RH KNIFE ASSY, 25FT SOYBEAN, ASN YHH051300 (58) - ATTACHMENTS/HEADERS
3
2
1
7
5
4
6
6
7
8
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47997864

KNIFE ASSY

RH 25FT Soybean, Incl 2 - 8

1шт.

2

48036644

KNIFE SECTION

OS, BT, STD AT

48шт.

3

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

10шт.

4

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

85шт.

5

321848A1

KNIFE CLIP

Strap, Reinforcing 3"

5шт.

6

84429102

LOCK NUT

95шт.

7

48036648

KNIFE SECTION

OS, BT CSB AT

3шт.

8

NSS

NOT SOLD SEPARAT

RH Knife Back

1шт.
