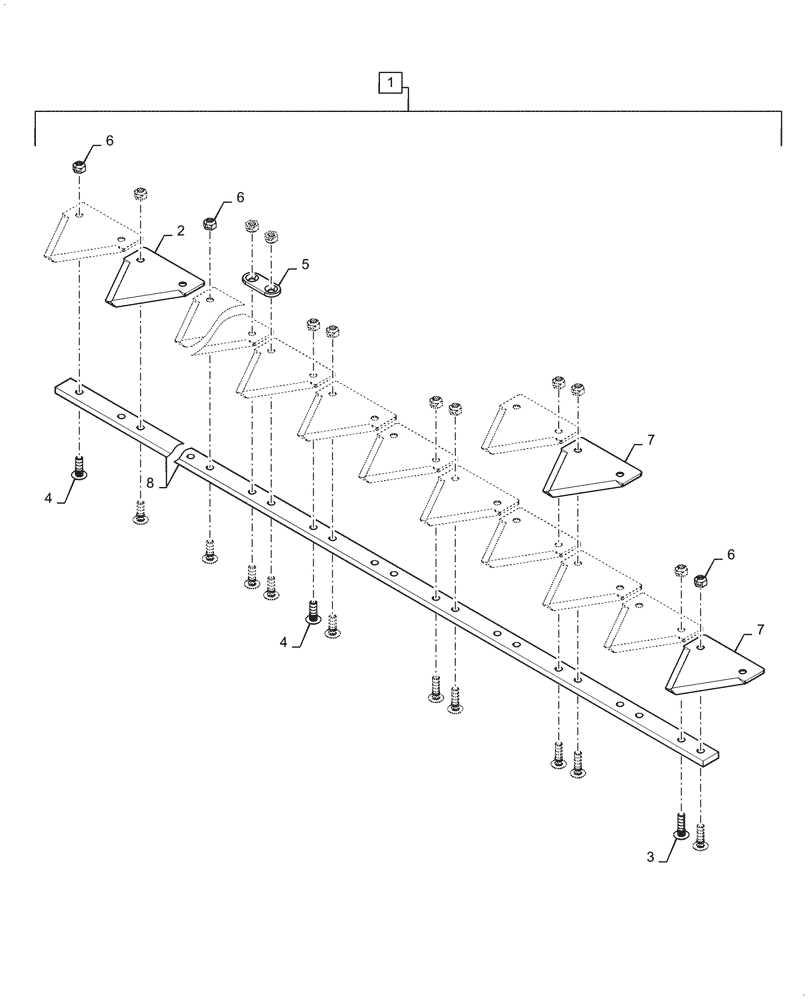

Запчасти Case IH 3152 (58.110.04[01]) - LH KNIFE ASSY, 25FT SOYBEAN, ASN YHH051300 (58) - ATTACHMENTS/HEADERS

1

47997861

KNIFE ASSY

LH 25FT Soybean, Incl 2 - 10

1шт.

2

48036648

KNIFE SECTION

OS, BT CSB AT

1шт.

3

48036640

KNIFE SECTION

OS, BT CST AT

3шт.

4

48036644

KNIFE SECTION

OS, BT, STD AT

48шт.

5

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

7шт.

6

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

10шт.

7

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

85шт.

8

321848A1

KNIFE CLIP

Strap, Reinforcing 3"

5шт.

9

84429102

LOCK NUT

102шт.

10

NSS

NOT SOLD SEPARAT

LH Knife Back, 25FT

1шт.
