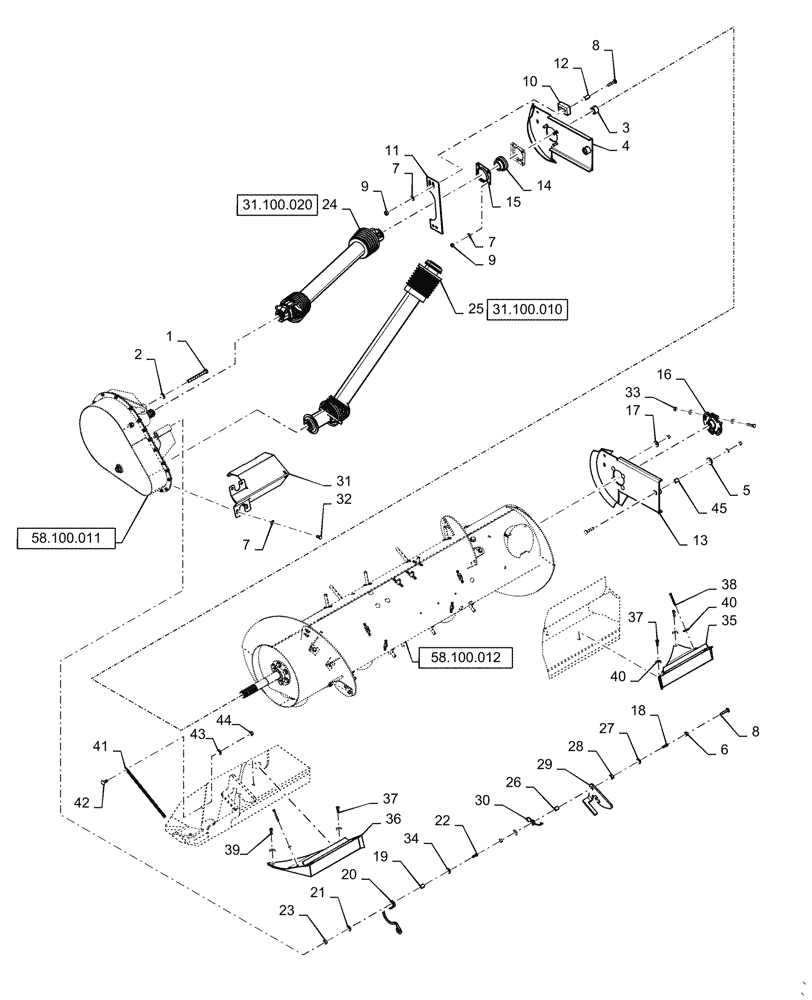

Запчасти Case IH 3152 (58.100.01[01]) - DRIVE, ASSY (58) - ATTACHMENTS/HEADERS

1

334967

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

2шт.

2

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

3

84238117

SPACER,45.7mm ID x 55mm OD x 33.8mm L

1шт.

4

84210278

BRACKET

LH

1шт.

5

86622619

WASHER,0.53" ID x 1.62" OD x 0.25" Thk

2шт.

6

48462

SPACER,12.852mm ID x 25.4mm OD x 31.8mm L

2шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

20шт.

8

412097

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

10шт.

9

9706685

NUT,M12 x 1.75, Cl 8

18шт.

10

87496459

BLOCK

Rubber

4шт.

11

84215029

PLATE

2шт.

12

568217R1

BUSHING,3/4" Tube x 1 1/4"

8шт.

13

84210277

BRACKET

RH

1шт.

14

9839347

BEARING ASSY,45mm ID x 85mm OD x 22mm W

1шт.

15

86979948

FLANGE

2шт.

16

84261957

HUB

, Serial Range: -YEH039999

1шт.

16

47788108

HUB

, Start Serial: YEH040000

1шт.

17

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

4шт.

18

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

19

626698

SPACER

1шт.

20

84247904

HANGER

PTO

1шт.

21

394629

WASHER,10.5mm ID x 24mm OD x 3mm Thk

1шт.

22

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

23

100016

NUT,M10 x 1.5, Cl 8

1шт.

24

84197922

DRIVE SHAFT

PTO

1шт.

25

84197920

DRIVE SHAFT

PTO

1шт.

26

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

1шт.

27

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

2шт.

28

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

1шт.

29

87033816

CLIP

1шт.

30

87026147

SPRING

1шт.

31

84378871

SHIELD

1шт.

32

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

33

412672

NUT,Hex, M12 x 1.75, Cl 10

2шт.

34

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

35

84486808

STRIPPER

RH

1шт.

36

84486805

STRIPPER

LH

1шт.

37

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

38

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

39

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

41

87665435

CHAIN

1шт.

42

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

43

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

44

87030561

NUT,M6 x 1, Cl 8

1шт.

45

604085

BUSHING

2шт.
