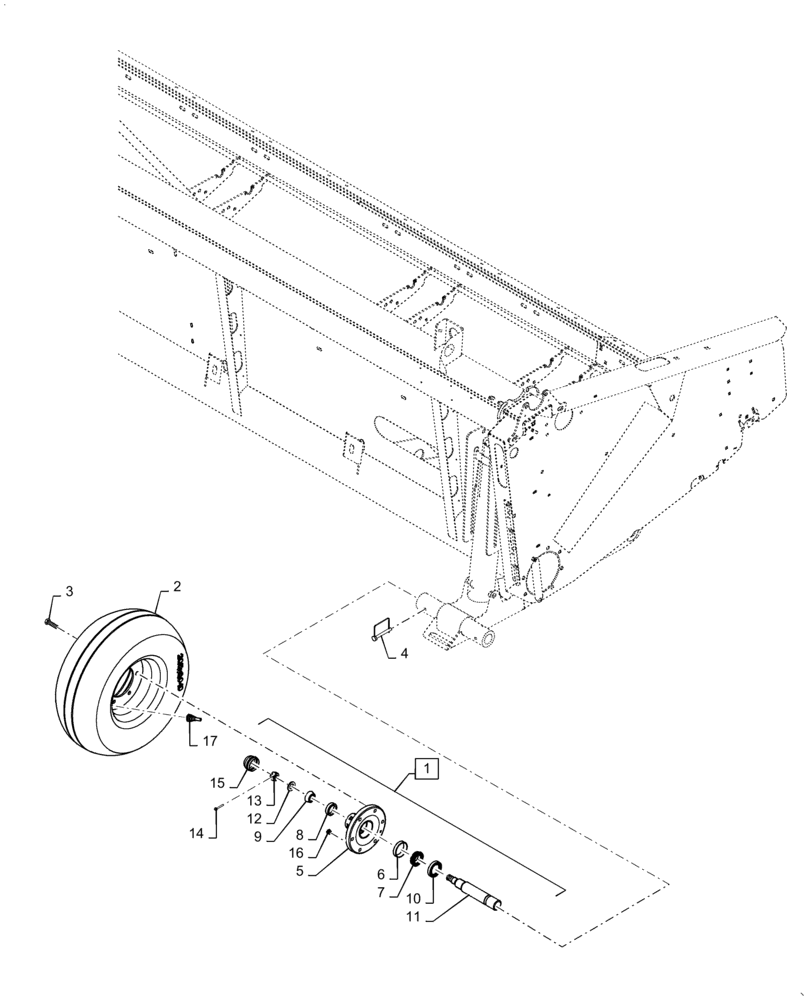

Запчасти Case IH 3152 (44.100.01) - HEADER GAUGE WHEELS, YEH042239 (44) - WHEELS

1

84231685

SPINDLE

Incl 5 - 16

2шт.

2

10106202

WHEEL ASSY.

Rim, Silver

2шт.

3

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel

12шт.

4

647695

PIN,7.94mm OD

Snap

2шт.

5

9847071

HUB

A

1шт.

6

36723

BEARING CUP,59.16mm OD x 11.81mm W

1шт.

7

36726

BEARING CONE,31.75mm ID x 16.76mm W

1шт.

7

84356153GV

BEARING

1шт.

8

574810

BEARING CUP,45.26mm OD x 12.06mm W

1шт.

9

574809

BEARING CONE,21.98mm ID x 16.64mm W

1шт.

10

36727

OIL SEAL,38.1mm ID x 59.28mm OD x 13.11mm Thk

1шт.

11

84231685

SPINDLE

Assy

1шт.

12

80011438

WASHER,19.45mm ID x 34.9mm OD x 2.59mm Thk

1шт.

13

88886

SLOTTED NUT,3/4"-16

1шт.

14

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

15

26808

CAP

1шт.

16

47592364

Plastic

6шт.

17

22802

VALVE

Stem

1шт.
