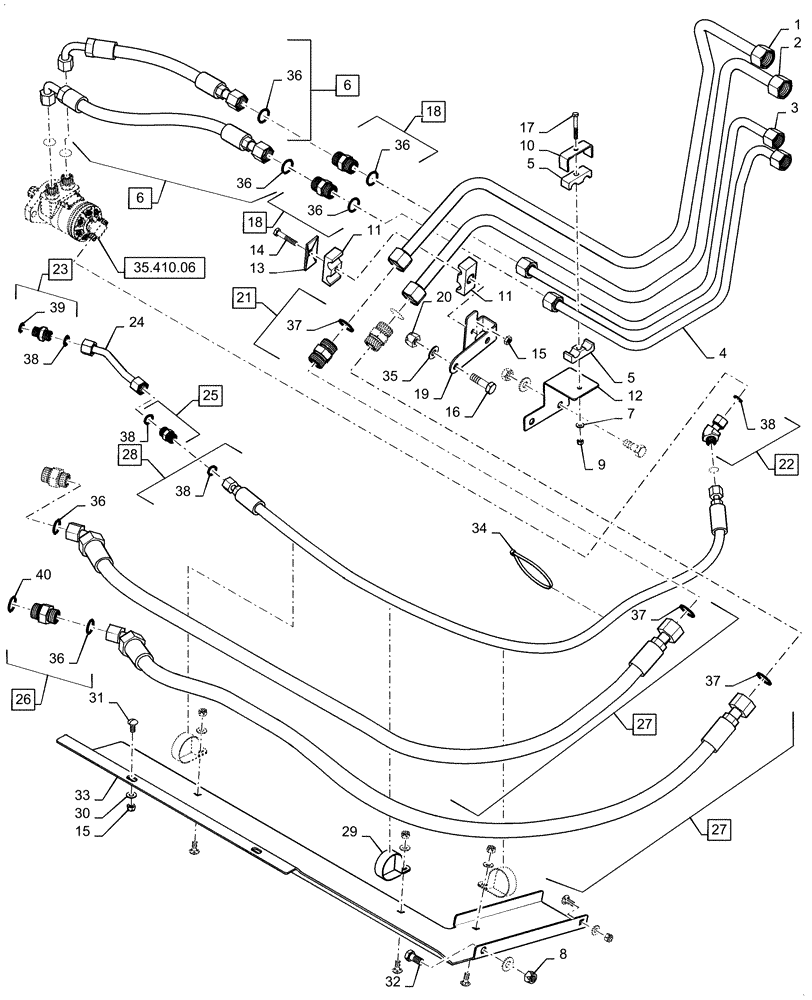

Запчасти Case IH 3152 (35.410.08[01]) - HYDRAULIC SYSTEM, RIGID DRAPER (35) - HYDRAULIC SYSTEMS

1

47421311

HYD TUBE

Valve Manifold Port M1

1шт.

2

47421313

HYD TUBE

Valve Manifold Port M1R

1шт.

3

47379776

HYD TUBE

Valve Manifold Port M2

1шт.

4

47379778

HYD TUBE

Valve Manifold Port M2R

1шт.

5

430356

CLAMP

2шт.

6

47381943

HYDRAULIC HOSE,12.7mm ID x 377mm L, SAE 100R16

Feed Draper Motor, Incl 36

2шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

8

100038

NUT,M12 x 1.75, Cl 8

1шт.

9

353308

NUT,M6 x 1.0, Cl 8

1шт.

10

84814948

SUPPORT

1шт.

11

87000151

CLAMP

19.05 x 19.05

1шт.

12

47422209

BRACKET

1шт.

13

87000230

PLATE

Hose Clamp

1шт.

14

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

15

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.

16

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

17

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

18

84431473

HYD CONNECTOR,1"-14 ORFS

Incl 36

2шт.

19

47421315

BRACKET

1шт.

20

9706685

NUT,M12 x 1.75, Cl 8

4шт.

21

84100407

UNION,1-3/16"-12 ORFS

Incl 37

2шт.

22

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl 38

1шт.

23

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 38 - 39

1шт.

24

84514605

HYD TUBE

Feed Draper Motor

1шт.

25

84431546

UNION,11/16"-16 ORFS

Incl 38

1шт.

26

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 36, 40

2шт.

27

84477948

HYDRAULIC HOSE,15.88mm ID x 1590mm L, SAE 100R16

Center Knife Drive Motor, Incl 36 - 37

2шт.

28

84477949

HYDRAULIC HOSE,6.35mm ID x 1475mm L, SAE 100R16

Center Knife Drive Motor, Incl 38

1шт.

29

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

31

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

5шт.

32

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

33

84602514

SHIELD

1шт.

34

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

35

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

36

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

37

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

38

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

39

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

40

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.
