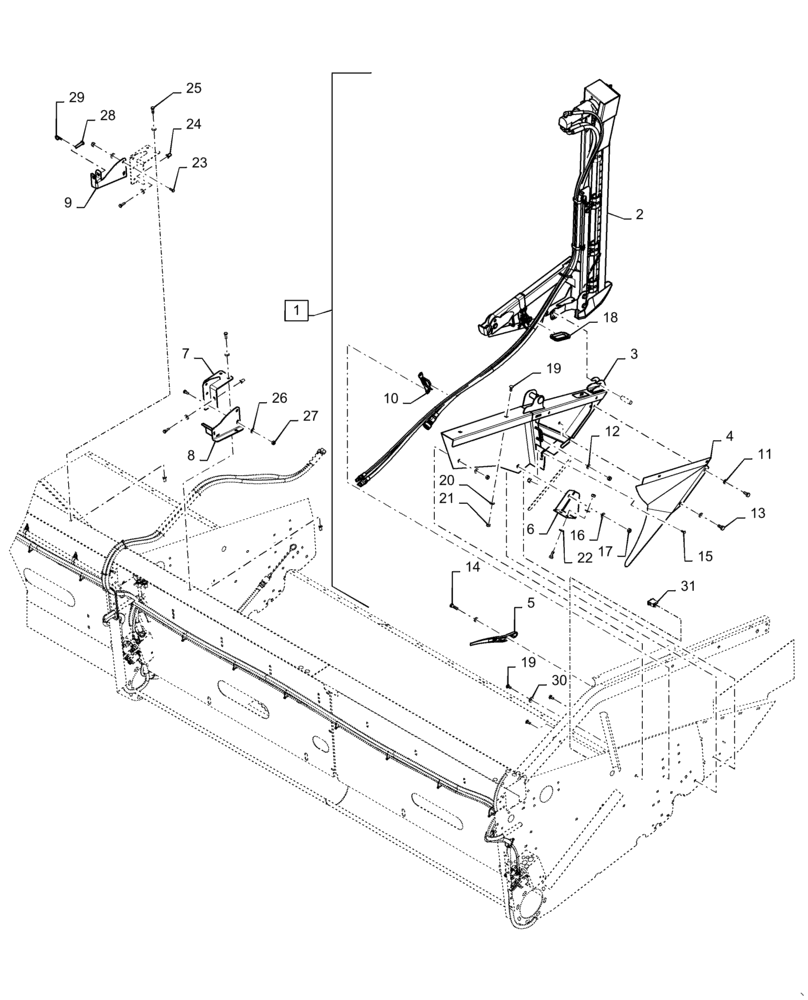

Запчасти Case IH 3152 (88.058.12[03]) - KNIFE, DIA KIT RH, 25, 30, 35, 40, 45 FT (88) - ACCESSORIES

1

84590095

SERVICE KIT

1шт.

2

47460078

RH

1шт.

3

47414909

PLATE

Side, RH

1шт.

4

47450752

SHIELD

RH

1шт.

5

87488952

DEFLECTOR

Crop

1шт.

6

47460084

SUPPORT

RH

1шт.

7

47488457

PLATE

2шт.

8

84231210

SUPPORT

1шт.

9

84204592

BRACKET, SUPPORTING

1шт.

10

47496039

BRACKET

1шт.

11

412653

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

12

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

13

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

14

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

17

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

18

291186

PROTECTION STRIP,9.9mm W

1шт.

19

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

5шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

21

86500689

NUT,M10 x 1.5, Cl 10

6шт.

22

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

23

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

24

84214045

RIVET,Flat, M10 OD x 25.75mm L

8шт.

25

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

26

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

4шт.

27

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

28

383420

CLEVIS PIN,M12 x 55

1шт.

29

370539

COTTER PIN,4.4mm x 52.8mm L

1шт.

30

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

1шт.
