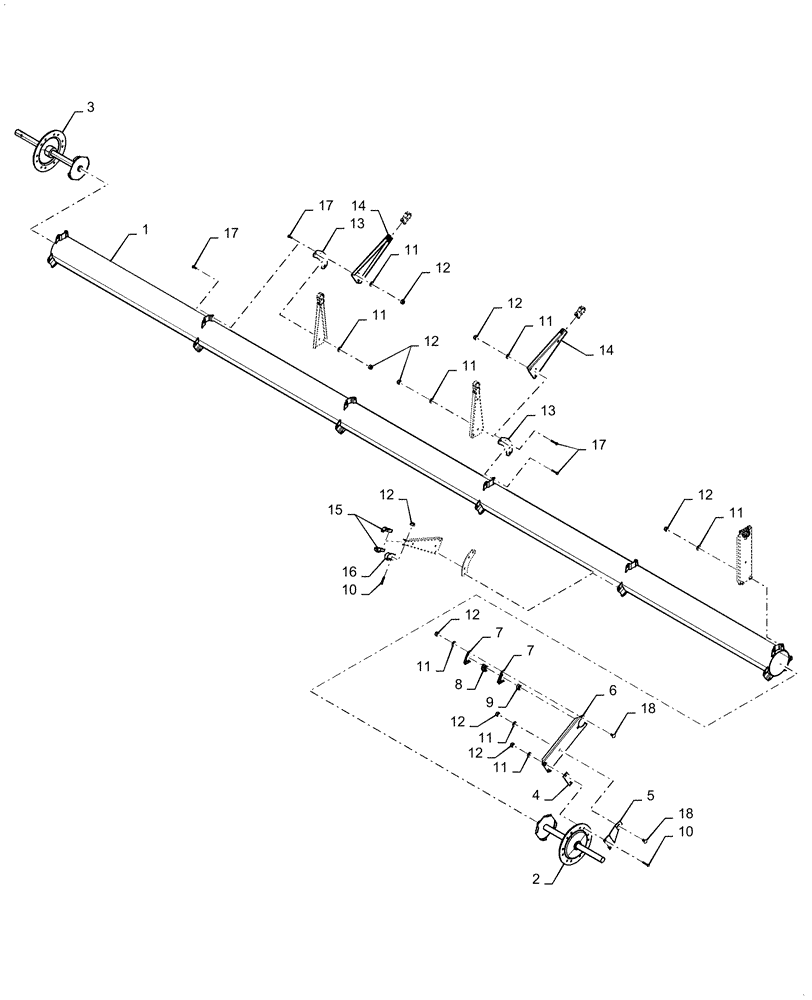

Запчасти Case IH 3152 (60.101.06[02]) - REEL, ASSY, CENTER TUBE, 25FT (60) - PRODUCT FEEDING

1

84297397

SUPPORT TUBE

Center

1шт.

2

47788243

SHAFT

LH End

1шт.

3

47386486

SHAFT

RH End

1шт.

4

84395517

SPACER

6шт.

5

47610099

BRACKET

12шт.

6

47582855

CHANNEL

12шт.

7

86548970

FLANGED BEARING

24шт.

8

45882

BALL BEARING,28.57mm ID x 62mm OD x 18mm W

12шт.

9

45876

COLLAR,28.6mm ID x 44.45mm OD x 16mm W

12шт.

10

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

48шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

120шт.

12

100037

LOCK NUT,M10 x 1.5, Cl 8

144шт.

13

86609773

PLATE

Anchor

12шт.

14

9842291

ARM

Reel

24шт.

15

9842300

BEARING ASSY,=H1204&I1204

48шт.

16

9842301

STRAP

Bearing

24шт.

17

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

48шт.

18

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

48шт.
