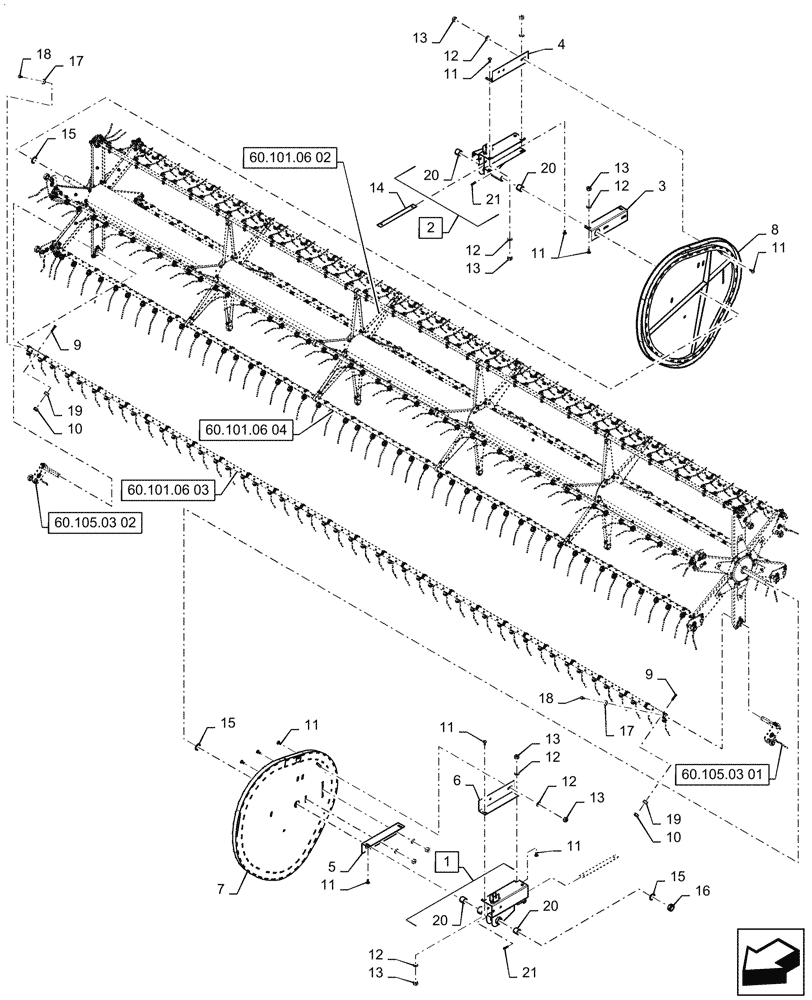

Запчасти Case IH 3152 (60.101.06[01]) - REEL, ASSY 25FT, STEEL TINE (60) - PRODUCT FEEDING

1

84146282

MOUNT

LH Reel, Serial Range: -YHH051299

1шт.

1

48040937

MOUNT

LH Reel, Start Serial: YHH051300

1шт.

2

84146236

MOUNT

RH Reel, Serial Range: -YHH051299

1шт.

2

48040940

MOUNT

RH Reel, Start Serial: YHH051300

1шт.

3

84146239

ANGLE

1шт.

4

47557967

ANGLE

1шт.

5

84404281

ANGLE

1шт.

6

47557972

SUPPORT

1шт.

7

84146310

CAM

LH

1шт.

8

84146308

CAM

RH

1шт.

9

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

24шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

24шт.

11

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

18шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

18шт.

13

9706685

NUT,M12 x 1.75, Cl 8

18шт.

14

47675181

SLIDE

, Serial Range: -YHH051299

2шт.

14

48037170

SLIDE

, Start Serial: YHH051300

2шт.

15

167934

WASHER,1.62" ID x 2.25" OD x 0.139"

3шт.

16

86518431

COLLAR

1шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

18

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

12шт.

19

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

24шт.

20

167940

BUSHING,39.76mm ID x 44.53mm OD x 38.1mm L

4шт.

21

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

22

87016659

COTTER PIN,M2.5 x 20mm OAL

Used On Ref 14, Start Serial: YHH051300

2шт.
