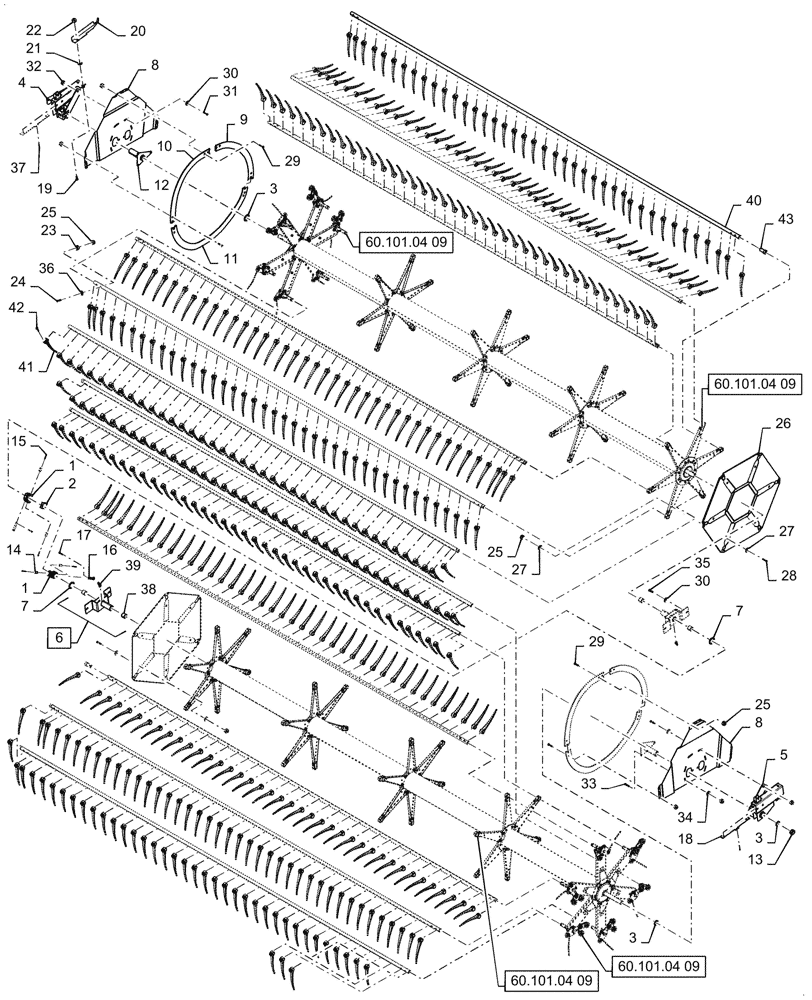

Запчасти Case IH 3152 (60.101.05[08]) - REEL ASSY, SPLIT CAM, PLASTIC TINE, 45FT - 6 BAT ASN YHH051300 (60) - PRODUCT FEEDING

1

47643784

JOINT

2шт.

2

47600506

CROSS

1шт.

3

167934

WASHER,1.62" ID x 2.25" OD x 0.139"

3шт.

4

48021234

MOUNT

RH Reel

1шт.

5

48021256

MOUNT

LH Reel

1шт.

6

48022296

HUB

2шт.

7

47562293

WASHER

2шт.

8

48044964

SHEET

2шт.

9

48044961

GUIDE

Upper Rear Cam Track

2шт.

10

48044962

GUIDE

Upper Front Cam Track

2шт.

11

48044963

GUIDE

Lower Cam Track

2шт.

12

48044990

BEARING ASSY

Tube

2шт.

13

86518431

COLLAR

1шт.

14

47628671

PIN

4шт.

15

87414

LUBE NIPPLE,1/4" - 28

4шт.

16

86624193

HEADED PIN,5/8" x 3 1/2", G5

2шт.

17

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

18

48037170

SLIDE

2шт.

19

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

20

48049722

POINTER

1шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

22

9706685

NUT,M12 x 1.75, Cl 8

1шт.

23

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

36шт.

24

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

36шт.

25

100037

LOCK NUT,M10 x 1.5, Cl 8

78шт.

26

283590A1

GUARD

Non Eccentric End

1шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

24шт.

28

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

12шт.

29

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

24шт.

30

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

6шт.

31

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

32

100038

NUT,M12 x 1.75, Cl 8

2шт.

33

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

34

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.

35

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

36

379401

WASHER,11mm ID x 30mm OD

24шт.

37

87016659

COTTER PIN,M2.5 x 20mm OAL

2шт.

38

167940

BUSHING,39.76mm ID x 44.53mm OD x 38.1mm L

Incl In Ref 6

4шт.

39

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

Incl In Ref 6

2шт.

40

48044983

REEL

Tine Bar Assy, 45FT

12шт.

41

47966404

FINGER

Plastic

258шт.

42

47966407

SCREW

Tapping

258шт.

43

48044984

SHAFT

Center, 45FT

1шт.
