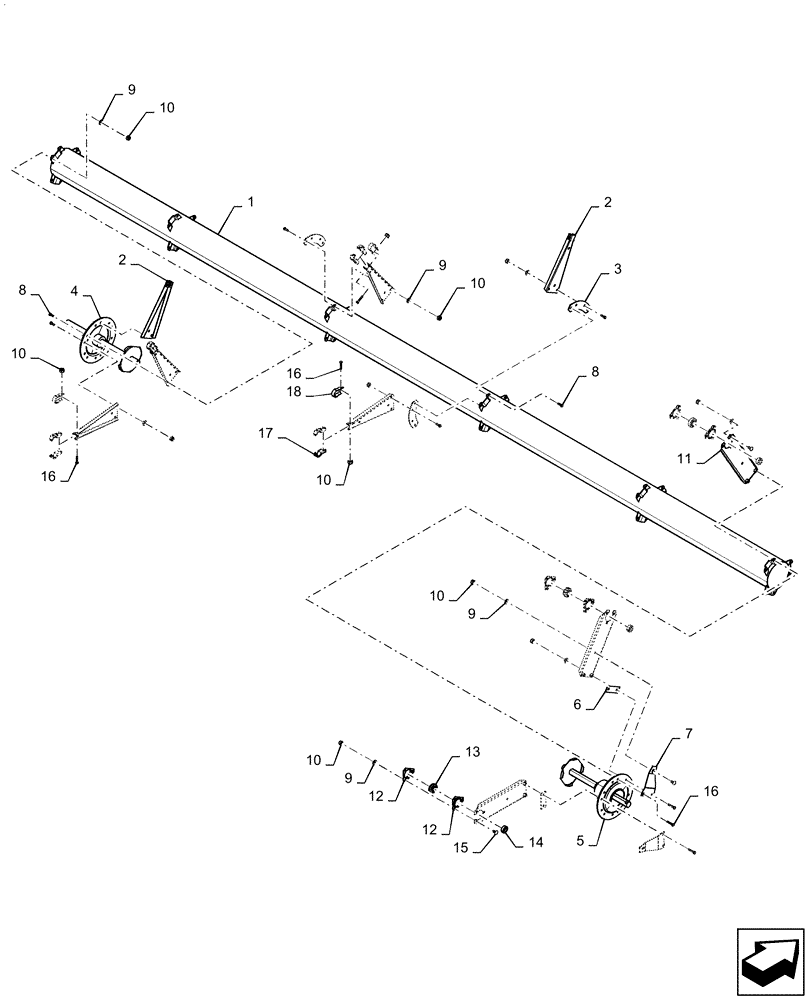

Запчасти Case IH 3152 (60.101.05[02]) - REEL ASSY, LH 45FT CENTER DOUBLE CAM, ASN YEH050000 (60) - PRODUCT FEEDING

1

84415772

REEL

Center Tube

1шт.

2

9842291

ARM

Reel

30шт.

3

86609773

PLATE

Anchor

12шт.

4

47788243

SHAFT

Outside End

1шт.

5

47398156

SHAFT

Inside End

1шт.

6

84395517

SPACER

3шт.

7

47610099

BRACKET

6шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

60шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

96шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

126шт.

11

47582855

CHANNEL

6шт.

12

86548970

FLANGED BEARING

12шт.

13

45882

BALL BEARING,28.57mm ID x 62mm OD x 18mm W

6шт.

14

45876

COLLAR,28.6mm ID x 44.45mm OD x 16mm W

6шт.

15

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

24шт.

16

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

42шт.

17

9842300

BEARING ASSY,=H1204&I1204

60шт.

18

9842301

STRAP

Bearing

30шт.
