(60.101.04[05]) - REEL, TINE BAR ASSY, RH 40FT, ASN YEH050000

Запчасти Case IH 3152 (60.101.04[05]) - REEL, TINE BAR ASSY, RH 40FT, ASN YEH050000 (60) - PRODUCT FEEDING

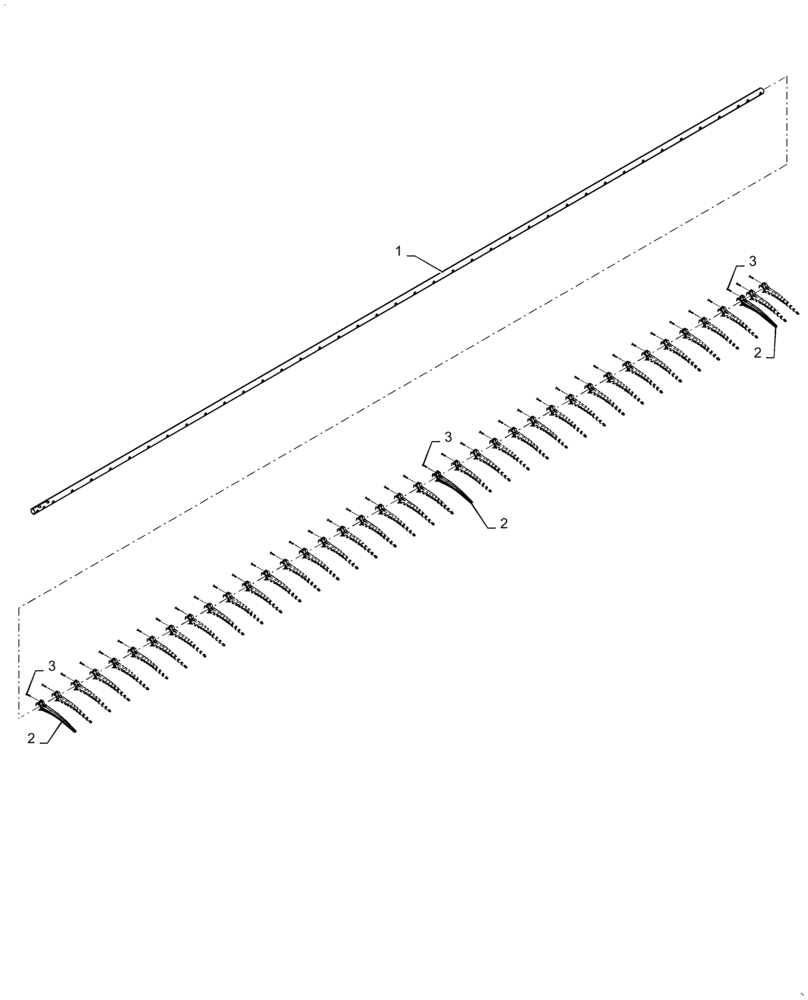

Схема запчастей Case IH 3152 - (60.101.04[05]) - REEL, TINE BAR ASSY, RH 40FT, ASN YEH050000 (60) - PRODUCT FEEDING
2
2
3
2
1
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47401390

REEL

LH, Tine Bar

3шт.

2

47392794

FINGER

Plastic, Serial Range: -YHH051299

40шт.

2

47966404

FINGER

Plastic, Start Serial: YHH051300

40шт.

3

9842264

SELF-TAP SCREW,Hex, M3.5 x 1.3 x 16mm

, Serial Range: -YHH051299

40шт.

3

47966407

SCREW

, Start Serial: YHH051300

40шт.
