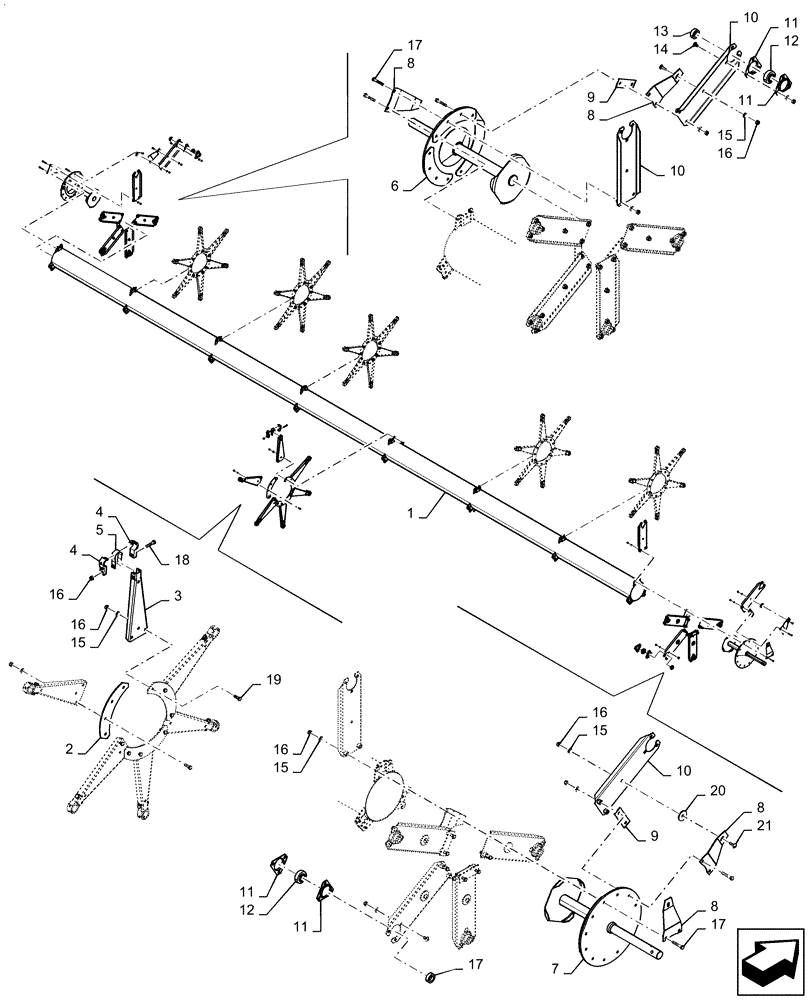

Запчасти Case IH 3152 (60.101.03[02]) - REEL, ASSY, CENTER TUBE 35FT (60) - PRODUCT FEEDING

1

87529353

SHAFT ASSY.

Center

1шт.

2

87053169

PLATE

Anchor

18шт.

3

87523837

ARM

Reel

36шт.

4

9842300

BEARING ASSY,=H1204&I1204

72шт.

5

9842301

STRAP

Bearing

36шт.

6

84544336

SHAFT

LH End

1шт.

7

84212117

SHAFT

RH End

1шт.

8

47610099

BRACKET

12шт.

9

84395517

SPACER

6шт.

10

47512288

CHANNEL

, Serial Range: -YEH050000

12шт.

10

47685380

CHANNEL

, Start Serial: YEH050000

12шт.

11

86548970

FLANGED BEARING

24шт.

12

45882

BALL BEARING,28.57mm ID x 62mm OD x 18mm W

12шт.

13

45876

COLLAR,28.6mm ID x 44.45mm OD x 16mm W

Lock

12шт.

14

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

36шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

144шт.

16

100037

LOCK NUT,M10 x 1.5, Cl 8

180шт.

17

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

24шт.

18

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

36шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

72шт.

20

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

12шт.

21

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

12шт.
