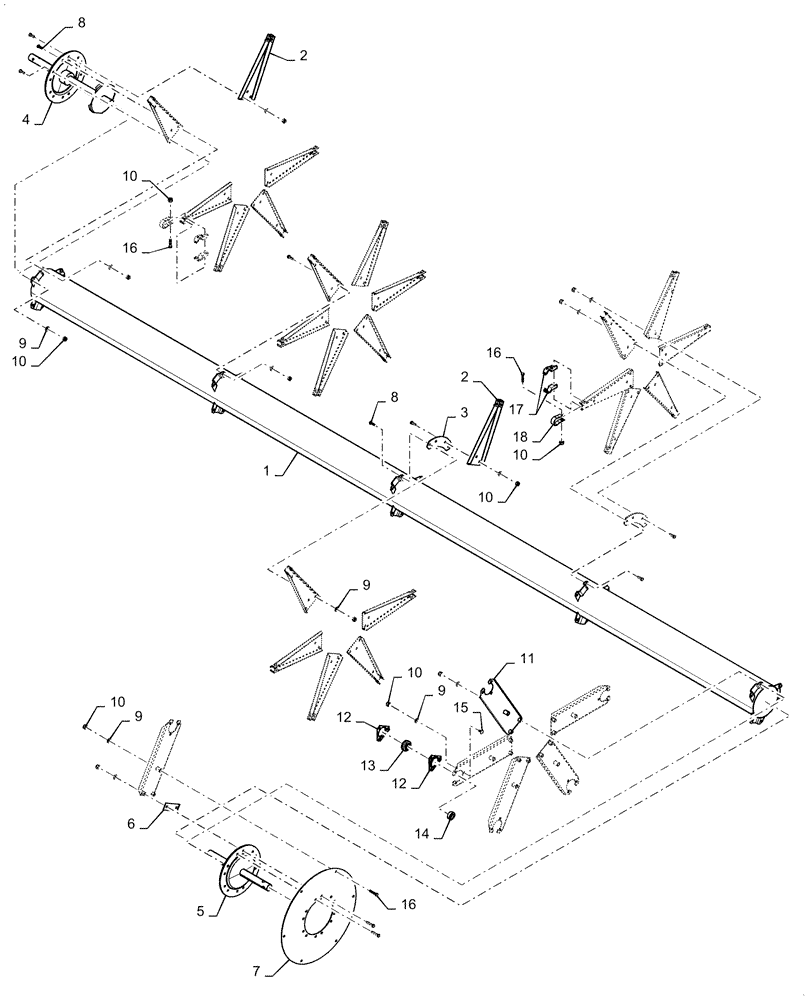

Запчасти Case IH 3152 (60.101.00[09]) - REEL, ASSY, RH, SINGLE CENTER CAM 40FT, BSN YEH040861 (60) - PRODUCT FEEDING

1

84403983

REEL

Center Tube

1шт.

2

9842291

ARM

Reel

24шт.

3

86609773

PLATE

Anchor

9шт.

4

47776852

SHAFT

Outside RH

1шт.

5

47428386

DRIVE SHAFT

Inside, Center

1шт.

6

84395517

SPACER

3шт.

7

84395529

DISC

Reel

1шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

48шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

84шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

108шт.

11

47512053

CHANNEL

6шт.

12

86548970

FLANGED BEARING

12шт.

13

45882

BALL BEARING,28.57mm ID x 62mm OD x 18mm W

6шт.

14

45876

COLLAR,28.6mm ID x 44.45mm OD x 16mm W

6шт.

15

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

18шт.

16

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

42шт.

17

9842300

BEARING ASSY,=H1204&I1204

48шт.

18

9842301

STRAP

Bearing

24шт.
