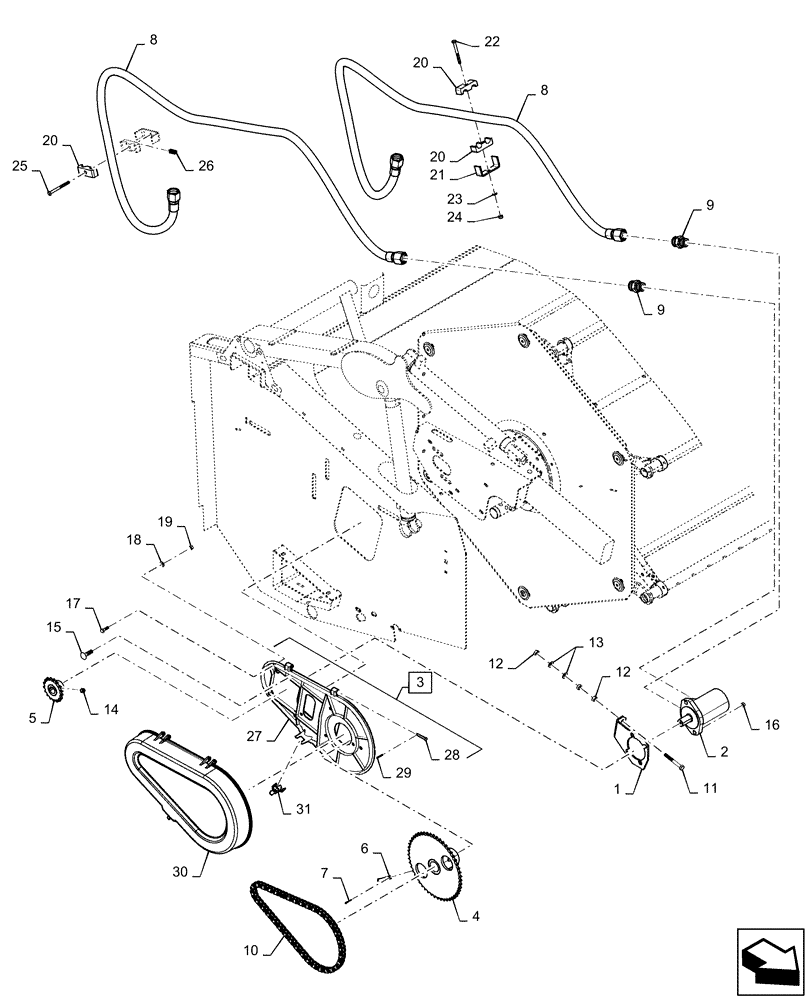

Запчасти Case IH 3152 (60.100.02) - REEL DRIVE (60) - PRODUCT FEEDING

1

87045366

ANGLE

Reel Drive Motor

1шт.

2

87036557

MOTOR, HYDRAULIC,195CC

Reel Drive

1шт.

87036557R

REMAN-HYD MOTOR

3162 (11/11-)

1шт.

87036557C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

*

87036584

SEAL KIT

1шт.

3

258978A1

SHIELD

Reel Drive, Incl 27 - 31

1шт.

4

129973A2

SPROCKET

Reel Driven, 51T

1шт.

5

87450165

DRIVE SPROCKET

Reel, 17T

1шт.

6

87036559

CLEVIS PIN,7/16" x 2.781"

2шт.

7

280251

COTTER PIN,3/32" OD x 1" OAL

2шт.

8

87659777

FLEXIBLE HOSE,12.70 mm ID x 2400.00 mm, SAE 100R17 Or SAE 100R16

2шт.

Hose Sleeve 87106154

1шт.

9

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

2шт.

10

87053561

CHAIN,70 Links x 15.88mm = 1111.25mm

Reel Drive

1шт.

11

120116

SCREW,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

12

100016

NUT,M10 x 1.5, Cl 8

3шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

14

87304415

SET SCREW,3/8" - 24 x 3/8"

2шт.

15

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

16

100038

NUT,M12 x 1.75, Cl 8

2шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

19

9706690

NUT,M8 x 1.25, Cl 8

5шт.

20

430356

CLAMP

6шт.

21

84814948

SUPPORT

3шт.

22

16040621

BOLT,Hex, M6 x 60mm, Cl 8.8, Full Thd

2шт.

23

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

24

353308

NUT,M6 x 1.0, Cl 8

3шт.

25

397985

BOLT,Hex, M6 x 70mm, Cl 8.8, Full Thd

Reel Drive

1шт.

26

NH291525

EDGE

1шт.

27

258980A1

SUPPORT

Reel Drive Shield

1шт.

28

86624075

HEADED PIN,6.35mm OD x 44.45mm L

Reel Drive Shield

2шт.

29

280250

COTTER PIN,3/32" OD x 3/4" L

Reel Drive Shield

2шт.

30

258981A1

SHIELD

Reel Drive

1шт.

31

87546613

LATCH

Reel Drive Shield

1шт.
