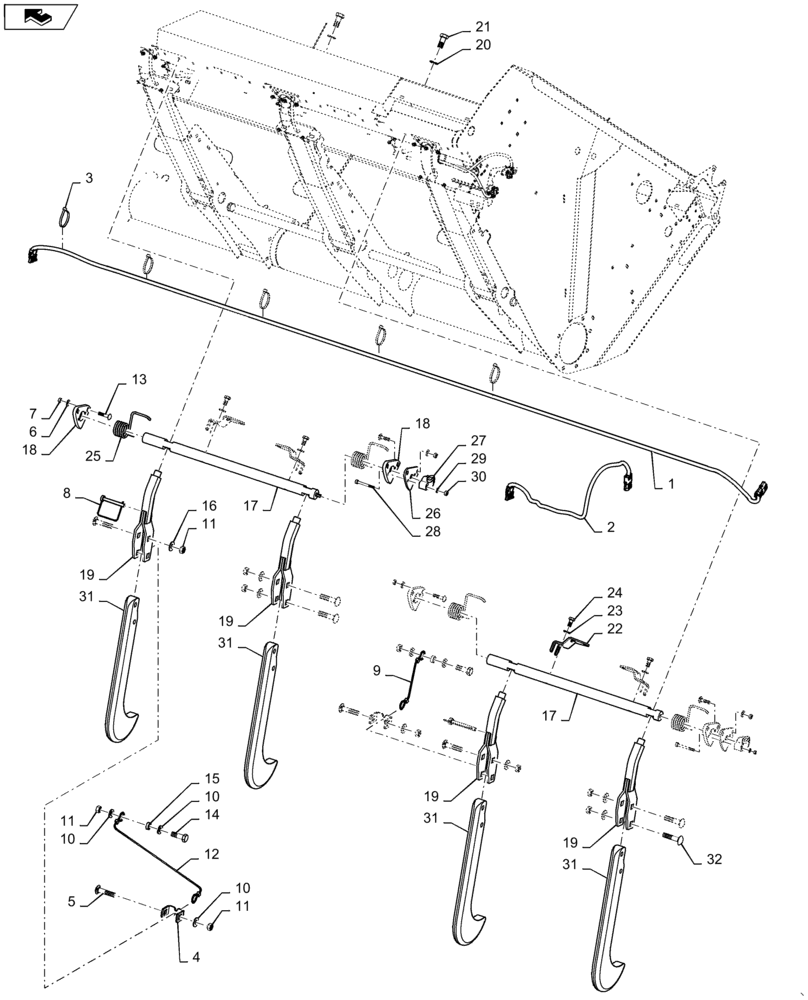

Запчасти Case IH 3152 (58.131.05[03]) - SENSOR ASSY, RIGID AHHC, 35/40/45 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

84537466

WIRE HARNESS

2шт.

2

84519644

WIRE HARNESS

2шт.

3

86566989

CABLE TIE,208mm L

12шт.

4

47466662

CLEVIS

4шт.

5

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

4шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

7

68841

NUT,M8 x 1.25, Cl 8

16шт.

8

647695

PIN,7.94mm OD

4шт.

9

47467507

CABLE,243mm L

3шт.

10

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

11

118490

NUT,M12 x 1.75, Cl 8

14шт.

12

47467531

CABLE,432mm L

1шт.

13

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

16шт.

14

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.

15

144607

SPACER,0.516" ID x 0.749" OD x 0.28" L

4шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

17

84419744

SHAFT

Wide

2шт.

18

47386673

PLATE

4шт.

19

47363383

ARM

4шт.

20

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

21

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

22

47376390

BRACKET

4шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

25

47461740

TORSION SPRING

4шт.

26

47389373

SPACER

2шт.

27

86616339

SENSOR,CCW

2шт.

28

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

4шт.

29

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

4шт.

30

2977215

NUT,M5 x 0.8, Cl 8

4шт.

31

47437120

ARM

4шт.

32

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

6шт.
