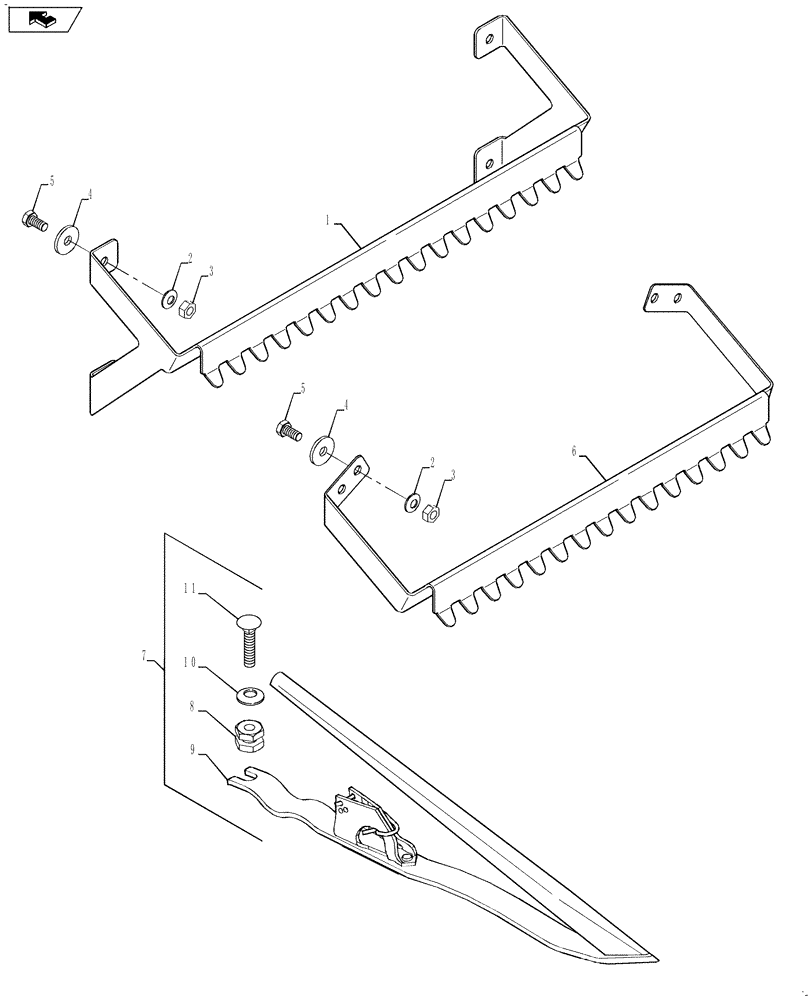

Запчасти Case IH 3152 (58.131.04) - CROP LIFTERS AND SUPPORT (58) - ATTACHMENTS/HEADERS

1

87699398

SUPPORT

Crop Lifters, 35 40 and 45 Foot Header

2шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

35, 40, and 45 Foot Header

8шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

30 Foot Header

4шт.

3

100016

NUT,M10 x 1.5, Cl 8

35, 40, and 45 Foot Header

8шт.

3

100016

NUT,M10 x 1.5, Cl 8

30 Foot Header

4шт.

4

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

35, 40, and 45 Foot Header

8шт.

4

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

30 Foot Header

4шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

35, 40, and 45 Foot Header

8шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

30 Foot Header

4шт.

6

84441549

SUPPORT

Crop Lifters, 30 Foot Header

1шт.

7

84134152

SERVICE KIT

1шт.

8

9514326

NUT

1шт.

9

84134059

CROP LIFTER

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

11

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

1шт.
