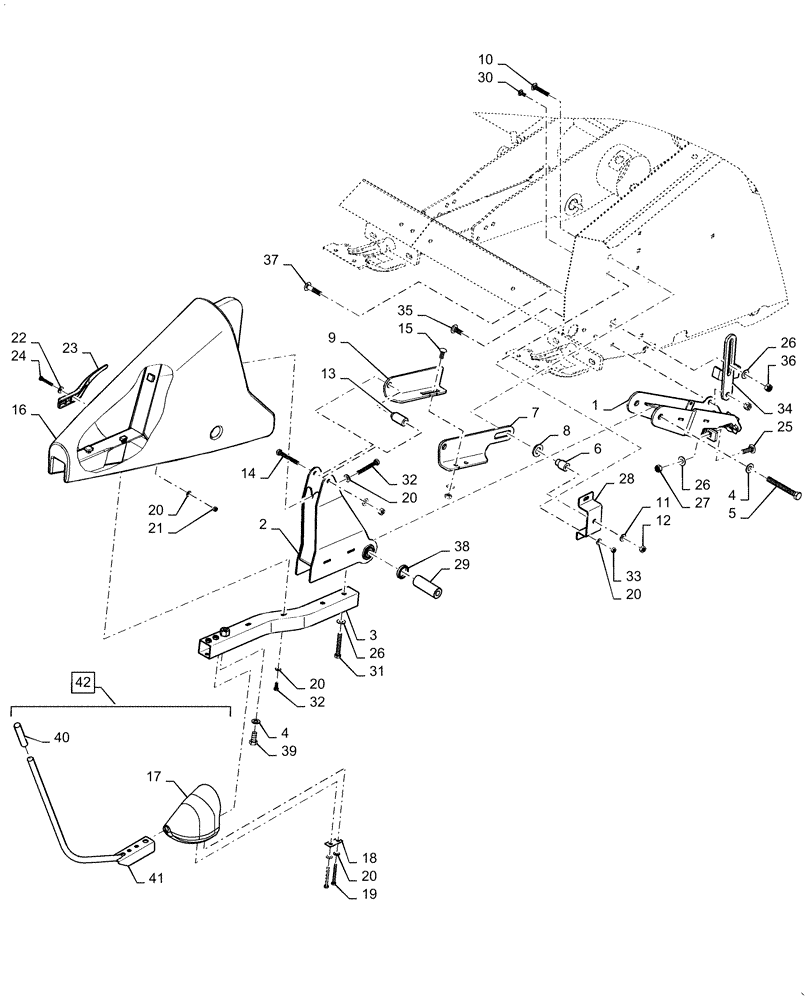

Запчасти Case IH 3152 (58.131.01) - DIVIDER ASSEMBLY, LEFT HAND (58) - ATTACHMENTS/HEADERS

1

84390062

DIVIDER

Left Hand, Flex

1шт.

1

84521512

BRACKET

Left Hand, Rigid

1шт.

2

84219357

MOUNT

Left Hand

1шт.

3

84219362

TUBE

Left Hand

1шт.

4

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

5

354360

BOLT,Hex, M16 x 2 x 130mm, Cl 8.8

1шт.

6

84164504

SPACER,11mm ID x 25mm OD x 37mm L

Stepped

1шт.

7

84306410

LINKAGE

Left Hand

1шт.

8

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

1шт.

9

84306514

LINKAGE

Left Hand

1шт.

10

86512447

CARRIAGE BOLT,Short Square Neck, M10 x 60mm, Class 8.8

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

12

100016

NUT,M10 x 1.5, Cl 8

3шт.

13

84137057

SPACER,11mm ID x 25mm OD x 50.8mm L

Lower Pivot

1шт.

14

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

1шт.

15

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

16

84195622

DIVIDER POINT

Left Hand

1шт.

17

84229093

DIVIDER POINT

Point

1шт.

18

84147660

PLATE

1шт.

19

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

21

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

22

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

2шт.

23

87488952

DEFLECTOR

Crop

1шт.

24

120107

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

2шт.

25

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

4шт.

26

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

7шт.

27

337475

NUT,M12, Cl 10

4шт.

28

84216625

BRACKET

1шт.

29

84137037

SPACER,17mm ID x 29.98mm OD x 93.15mm L

Lower Pivot

1шт.

30

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

31

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

2шт.

32

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

33

9706690

NUT,M8 x 1.25, Cl 8

2шт.

34

84556812

LINK

1шт.

35

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

36

412672

NUT,Hex, M12 x 1.75, Cl 10

2шт.

37

87033290

CARRIAGE BOLT,Sht Sq Nk, M12 x 55mm, Cl 8.8

1шт.

38

210022

BUSHING

2шт.

39

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

40

369441A1

DECAL

Retroreflective, White

1шт.

41

84229082

ROD

Extension

1шт.

42

84229083

DIVIDER

Extension, Assy, Incl 40 - 41, 17

1шт.
