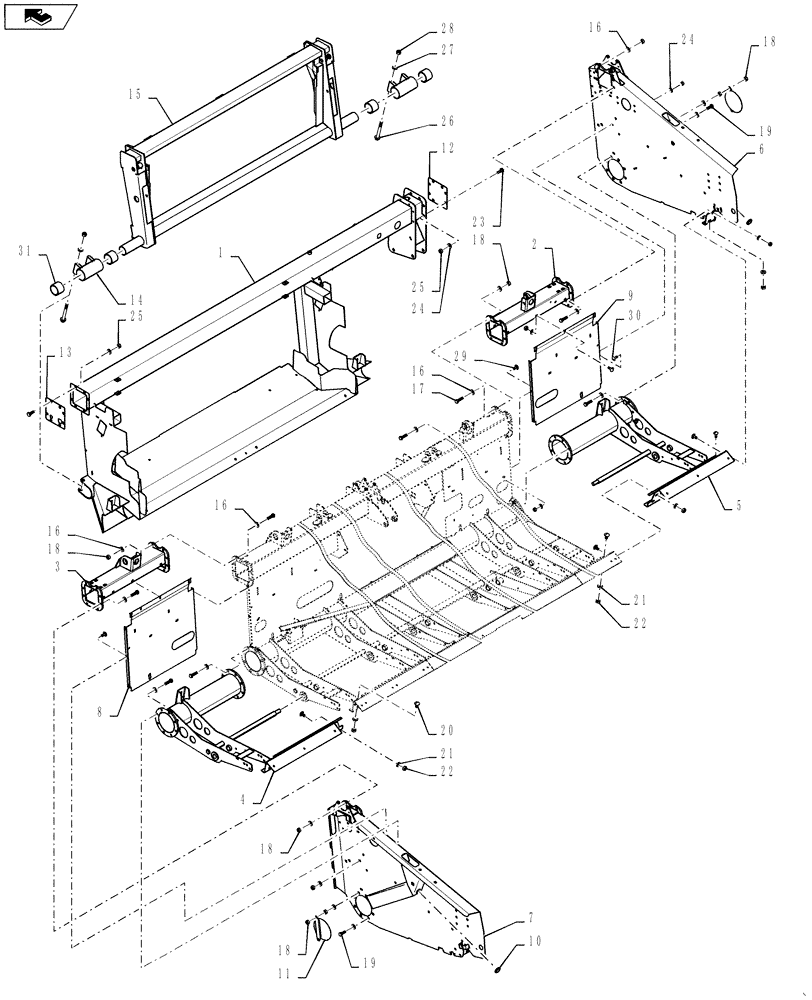

Запчасти Case IH 3152 (58.130.04[04]) - FRAME ASSEMBLY, 40 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

84385513

FRAME

Assy, Flex, Serial Range: -YEH040861

1шт.

1

47693317

FRAME

Assy, Flex, Start Serial: YEH050000

1шт.

2

84389266

CHANNEL

Right Hand

1шт.

3

84389264

CHANNEL

Left Hand

1шт.

4

84389779

TUBE

Right Hand

1шт.

5

84389777

TUBE

Left Hand

1шт.

6

84389076

SHEET

Left Hand

1шт.

7

84389073

SHEET

SHEET, Right Hand

1шт.

8

84389621

PANEL

Right Hand

1шт.

9

84389623

PANEL

Left Hand

1шт.

10

129959

GROMMET

2шт.

11

84295960

COVER

COVER RED

2шт.

12

84354252

COVER

COVER DARK GREY

1шт.

13

84475740

COVER ASSY

Frame

1шт.

14

NSS

NOT SOLD SEPARAT

HUB ASSEMBLY

2шт.

15

84389246

FRAME

1шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

112шт.

17

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

56шт.

18

9706685

NUT,M12 x 1.75, Cl 8

52шт.

19

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

8шт.

20

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

12шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

22

100016

NUT,M10 x 1.5, Cl 8

12шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

16шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

34шт.

25

9706690

NUT,M8 x 1.25, Cl 8

34шт.

26

334967

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

4шт.

27

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

28

86000441

NUT,M16 x 2.0, Cl 8

4шт.

29

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

6шт.

30

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

12шт.

31

132252

BUSHING,76.96mm ID x 89.36mm OD x 63.5mm L

4шт.

32

85801249

LEVEL GAUGE

Frame

1шт.
