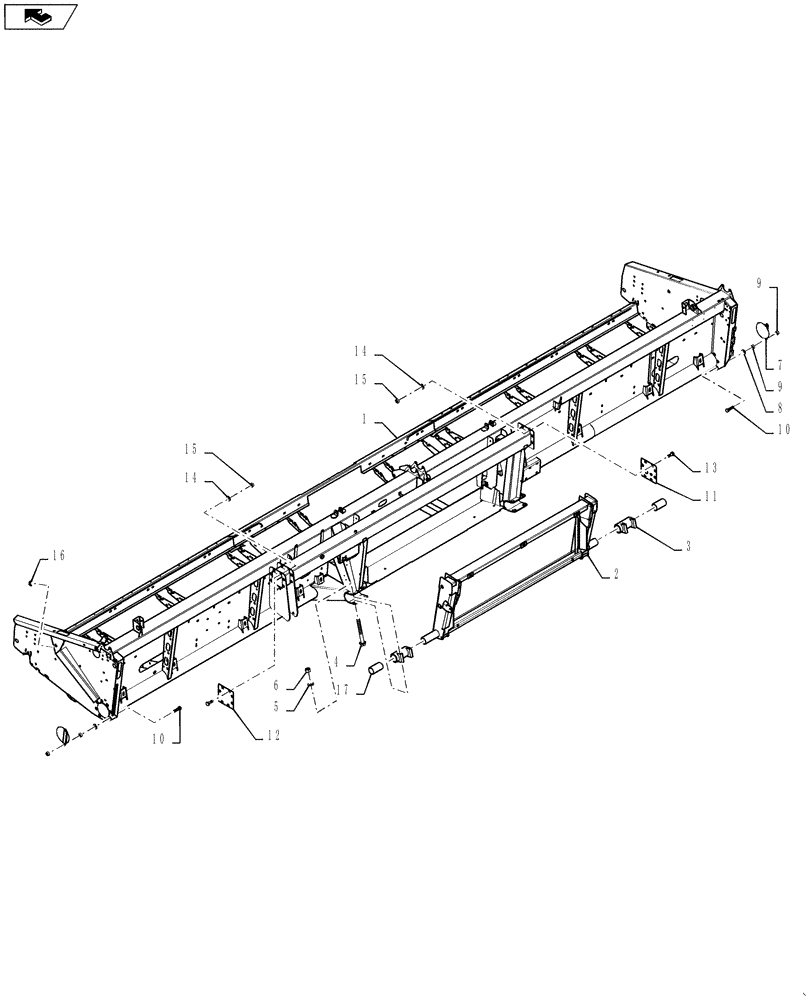

Запчасти Case IH 3152 (58.130.04[02]) - FRAME ASSEMBLY, 30 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

84385519

FRAME

Assembly, Flex, Serial Range: -YEH040861

1шт.

1

47693564

FRAME

Assembly, Flex, Start Serial: YEH050000

1шт.

1

84521921

FRAME

Assembly, Rigid

1шт.

2

84389246

FRAME

Frame Assembly

1шт.

3

84373179

HUB

Frame Adapter

2шт.

4

334967

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

4шт.

5

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

6

86000441

NUT,M16 x 2.0, Cl 8

4шт.

7

84295960

COVER

COVER

2шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

9

9706685

NUT,M12 x 1.75, Cl 8

6шт.

10

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

11

84475740

COVER ASSY

COVER RED

1шт.

12

84354252

COVER

COVER DARK GREY

1шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

16шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

15

9706690

NUT,M8 x 1.25, Cl 8

16шт.

16

129959

GROMMET

2шт.

17

132252

BUSHING,76.96mm ID x 89.36mm OD x 63.5mm L

4шт.

18

85801249

LEVEL GAUGE

Frame

1шт.
