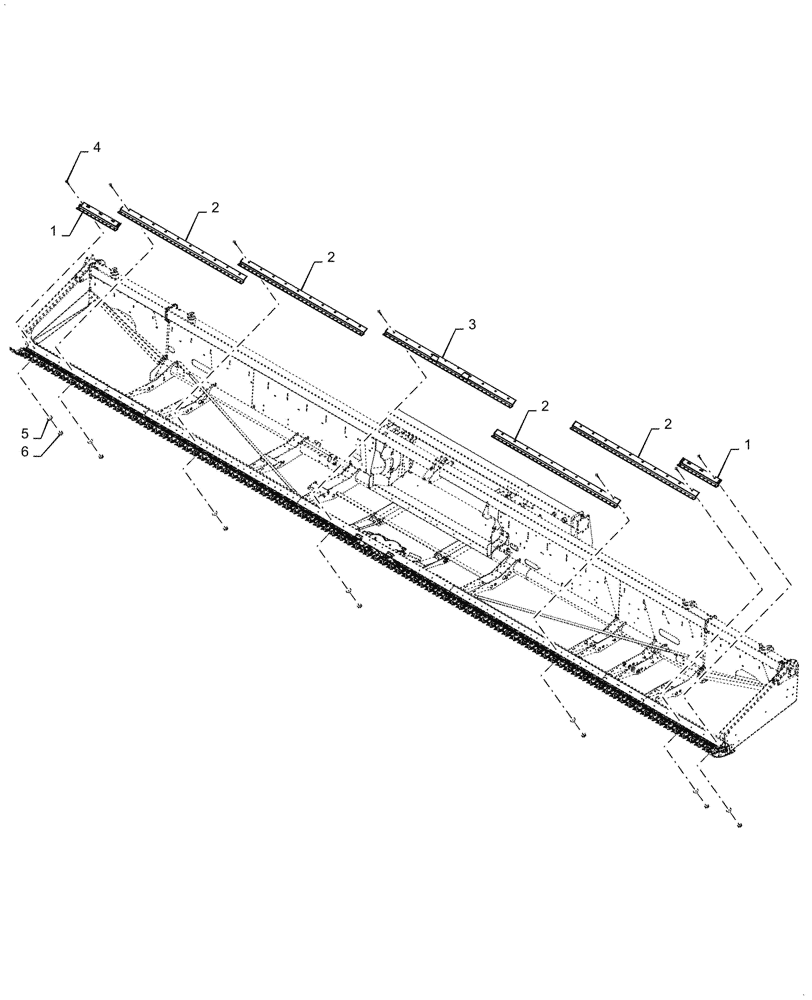

Запчасти Case IH 3152 (58.130.02[03]) - CUTTERBAR, EUROPE ONLY (58) - ATTACHMENTS/HEADERS

1

47696710

CUTTERBAR

45FT End

2шт.

1

47696706

CUTTERBAR

40FT End, Actual Length Not Shown

2шт.

1

47696697

CUTTERBAR

35FT End, Actual Length Not Shown

2шт.

2

47695858

CUTTERBAR

Outer, 45FT

4шт.

2

47695858

CUTTERBAR

Outer, 40FT And 35FT

2шт.

3

47695848

CUTTERBAR

Center

1шт.

4

86512422

CARRIAGE BOLT,Sq Nk, M10 x 20mm, Cl 8.8, Full Thd

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

6

100016

NUT,M10 x 1.5, Cl 8

1шт.
