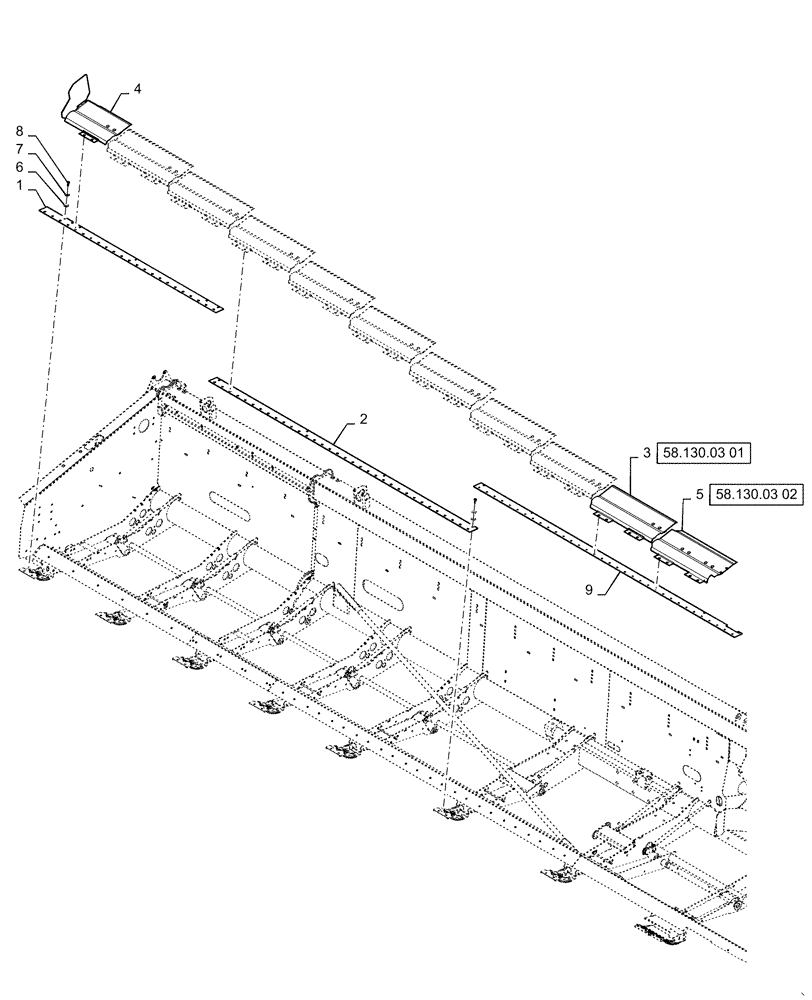

Запчасти Case IH 3152 (58.130.02[02]) - FLOOR, ASSY, 45FT CENTER KNIFE DRIVE, RH (58) - ATTACHMENTS/HEADERS

1

47403696

SERVICE KIT

45 ft

1шт.

2

84126953

BAR

Inside

1шт.

3

NSS

NOT SOLD SEPARAT

Floor Assy, RH

9шт.

4

84129202

FLOOR

Assy, RH, Outer

1шт.

5

NSS

NOT SOLD SEPARAT

Floor Assy, RH, Center Knife Drive

1шт.

6

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

8

87778873

BOLT,Hex, M10 x 25, 8.8, Full Thd

6шт.

9

47403718

CUTTERBAR

Center RH

1шт.
