(58.130.02[02]) - FLOOR, ASSY, 35FT CENTER KNIFE DRIVE, RH

Запчасти Case IH 3152 (58.130.02[02]) - FLOOR, ASSY, 35FT CENTER KNIFE DRIVE, RH (58) - ATTACHMENTS/HEADERS

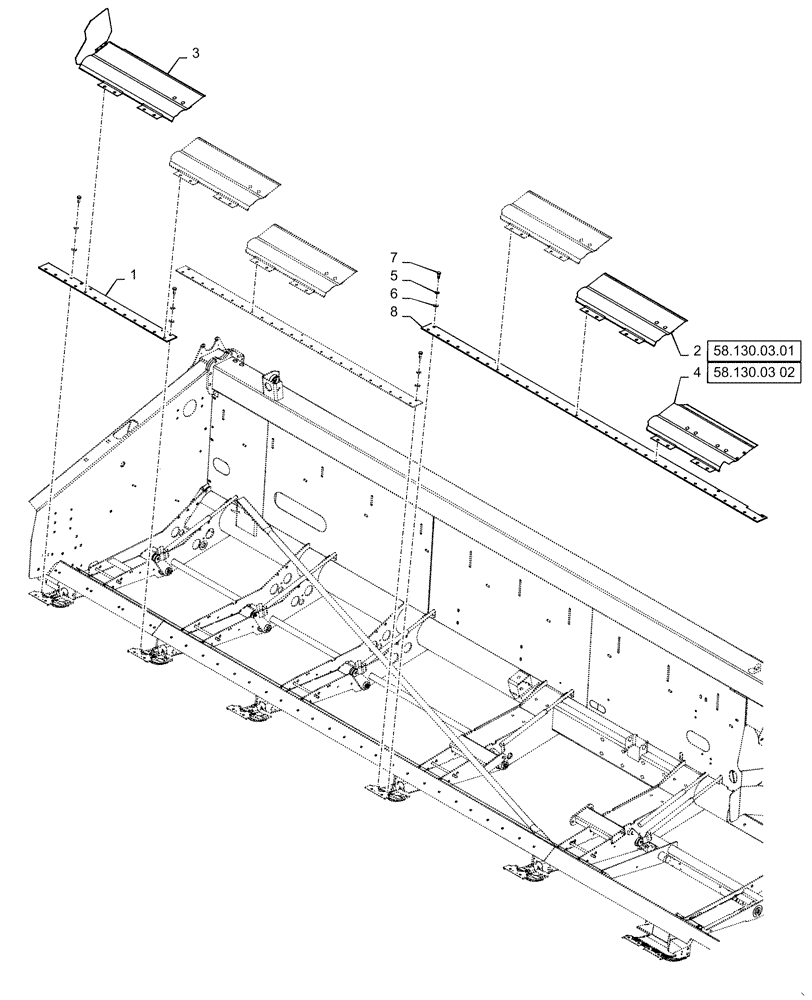

Схема запчастей Case IH 3152 - (58.130.02[02]) - FLOOR, ASSY, 35FT CENTER KNIFE DRIVE, RH (58) - ATTACHMENTS/HEADERS
1
58.130.03 02
6
2
5
3
4
7
58.130.03.01
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47403708

SERVICE KIT

35FT

1шт.

2

NSS

NOT SOLD SEPARAT

Floor Assy, RH

6шт.

3

84209635

FLOOR

Assy RH, Outer

1шт.

4

NSS

NOT SOLD SEPARAT

Floor Assy, RH, Center Knife Drive

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

6

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

7

87778873

BOLT,Hex, M10 x 25, 8.8, Full Thd

6шт.

8

47403718

CUTTERBAR

Center, RH

1шт.
