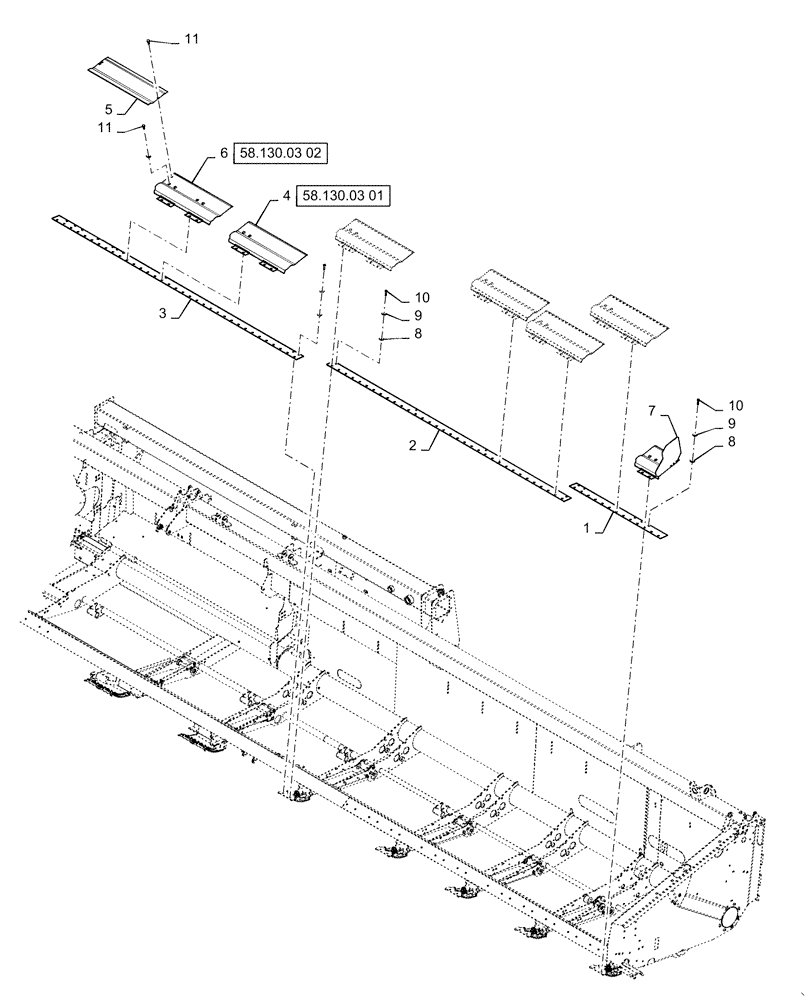

Запчасти Case IH 3152 (58.130.02[01]) - FLOOR, ASSY, 40FT CENTER KNIFE DRIVE, LH (58) - ATTACHMENTS/HEADERS

1

47403708

SERVICE KIT

40 ft

1шт.

2

84126953

BAR

Inside

1шт.

3

84359388

CUTTERBAR

RH

1шт.

4

NSS

NOT SOLD SEPARAT

Floor Assy, LH

8шт.

5

47552394

FLOOR

Center

1шт.

6

NSS

NOT SOLD SEPARAT

Floor Assy, LH, Center Knife Drive

1шт.

7

84209402

FLOOR

Assy, LH Outer, 40 ft

1шт.

8

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

10

87778873

BOLT,Hex, M10 x 25, 8.8, Full Thd

6шт.

11

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.
