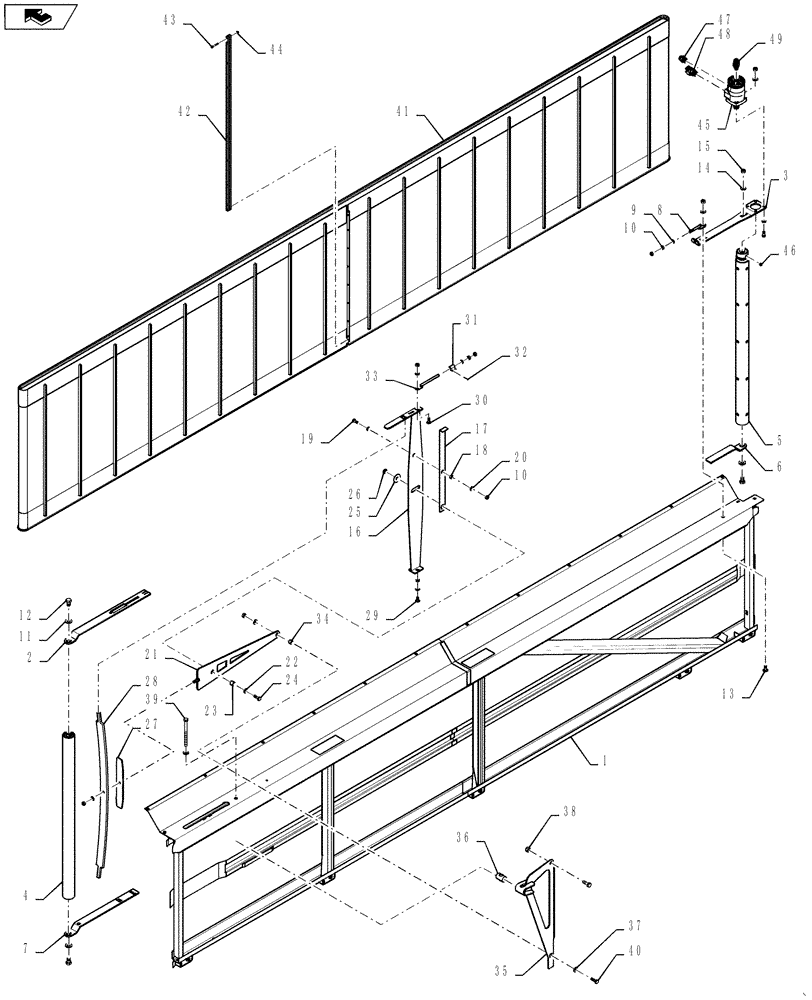

Запчасти Case IH 3152 (58.115.07) - TENSIONER - LH (58) - ATTACHMENTS/HEADERS

1

84535821

CONVEYOR

Left Hand, 25 Foot Header

1шт.

1

84305274

CONVEYOR

Left Hand, 30 Foot Header

1шт.

1

87478998

CONVEYOR

Left Hand, 35 Foot Header

1шт.

1

87491415

CONVEYOR

Left Hand, 40 Foot Header

1шт.

1

84131688

CONVEYOR

Left Hand, 45 Foot Header

1шт.

2

87477203

ARM

Rear

1шт.

3

87478446

ARM

1шт.

4

87701210

ROLLER,60.33mm OD x 996mm L

1шт.

4

87493745

BALL BEARING,25mm ID x 52mm OD x 20.64mm W

Included In Roller 87701210 And 84476056

3шт.

5

84476056

ROLLER,66.3mm OD x 1051mm L

1шт.

6

87478442

ARM

Left Hand

1шт.

7

47371572

DRAPER

1шт.

8

87473099

ADJUSTER

Drive Roller

1шт.

9

140017

WASHER,M10 x 20mm OD x 2mm Thk

5шт.

10

100016

NUT,M10 x 1.5, Cl 8

9шт.

11

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

12

15980321

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

3шт.

13

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

15

9706685

NUT,M12 x 1.75, Cl 8

2шт.

16

87478450

STABILIZER

Left Hand

1шт.

17

87478996

INDICATOR

1шт.

18

626698

SPACER

1шт.

19

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

5шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

21

87478451

SUPPORT

1шт.

22

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

23

87305403

SPACER,13.51mm ID x 19.05mm OD x 17.5mm Thk

1шт.

24

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

25

87529126

WASHER,0.53" ID x 1.75" OD x 0.1" Thk

1шт.

26

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

27

87491665

LEAF SPRING

1шт.

28

87491663

LEAF SPRING

1шт.

29

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

30

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

31

87477205

BRACKET

1шт.

32

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

33

87473100

ROD

Threaded

1шт.

34

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

1шт.

35

87478994

BELLCRANK

Left Hand

1шт.

36

87477200

NUT,Special

1шт.

37

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

38

100038

NUT,M12 x 1.75, Cl 8

1шт.

39

9814566

BOLT,Hex, M16 x 2 x 190mm, Cl 8.8, Full Thd

1шт.

40

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

41

47371562

BELT

25 Foot Header

1шт.

41

84307562

BELT

30 Foot Header

1шт.

41

87753629

BELT

35 Foot Header

1шт.

41

87478999

BELT

40 Foot Header

1шт.

41

87753630

BELT

45 Foot Header

1шт.

42

87751957

SLAT

Connector

2шт.

43

84517619

HEX SOC SCREW,M5 x 35mm, Cl 12.9

10шт.

44

86512495

FLANGE NUT,Hex, M5, Cl 8

10шт.

45

84393903

HYDRAULIC MOTOR,41CC

1шт.

46

80425

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

2шт.

47

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

1шт.

48

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

49

87305436

HYD CONNECTOR

1шт.

50

87470510

PIN,35mm OD x 53mm L

Not Shown

2шт.
