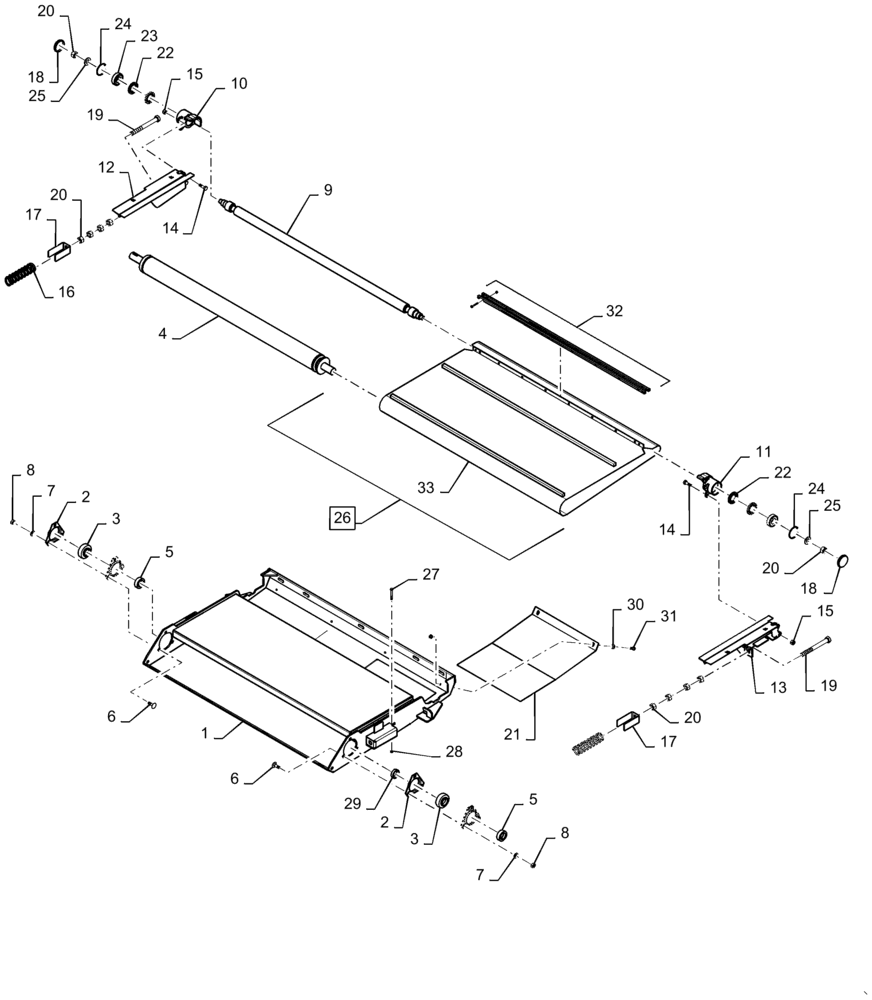

Запчасти Case IH 3152 (58.115.02[03]) - FEEDER, ASSY, RH (58) - ATTACHMENTS/HEADERS

1

47541249

FEEDER

RH

1шт.

2

87758678

FLANGE

4шт.

3

63265

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

2шт.

4

84163554

ROLLER SHAFT

RH

1шт.

5

63266

COLLAR,30.187mm ID x 44.83mm OD x 16.26mm W

2шт.

6

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

6шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

8

100016

NUT,M10 x 1.5, Cl 8

6шт.

9

87705513

SHAFT

Roller

1шт.

10

87470513

HOUSING

LH, Assy

1шт.

11

87470515

HOUSING

RH, Assy

1шт.

12

84205244

ARM

LH

1шт.

13

84205242

ARM

RH

1шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

16

84269942

TENSION SPRING

Assy

2шт.

17

84151895

RETAINER

Assy

2шт.

18

84190205

DUST CAP

2шт.

19

359211

BOLT,M16 x 2.0 x 150mm, Cl 8.8

2шт.

20

100020

NUT,M16 x 2.0, Cl 8

10шт.

21

47525972

COVER

2шт.

22

87470518

SEAL,28.57mm ID x 51.99mm OD x 6.35mm Thk

4шт.

23

84569437

BALL BEARING,25mm ID x 52.01mm OD x 15.12mm W

2шт.

24

370011

CIRCLIP,M52 x 2mm Thk, Internal

2шт.

25

86632590

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

26

47541224

FEEDER

Infeed Rigid, Incl 32, 33

1шт.

27

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

28

353308

NUT,M6 x 1.0, Cl 8

2шт.

29

684881

SPACER

1шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

31

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

32

47371025

SLAT

Connector Kit

1шт.

33

47932836

DRAPER

Infeed Rigid

1шт.
