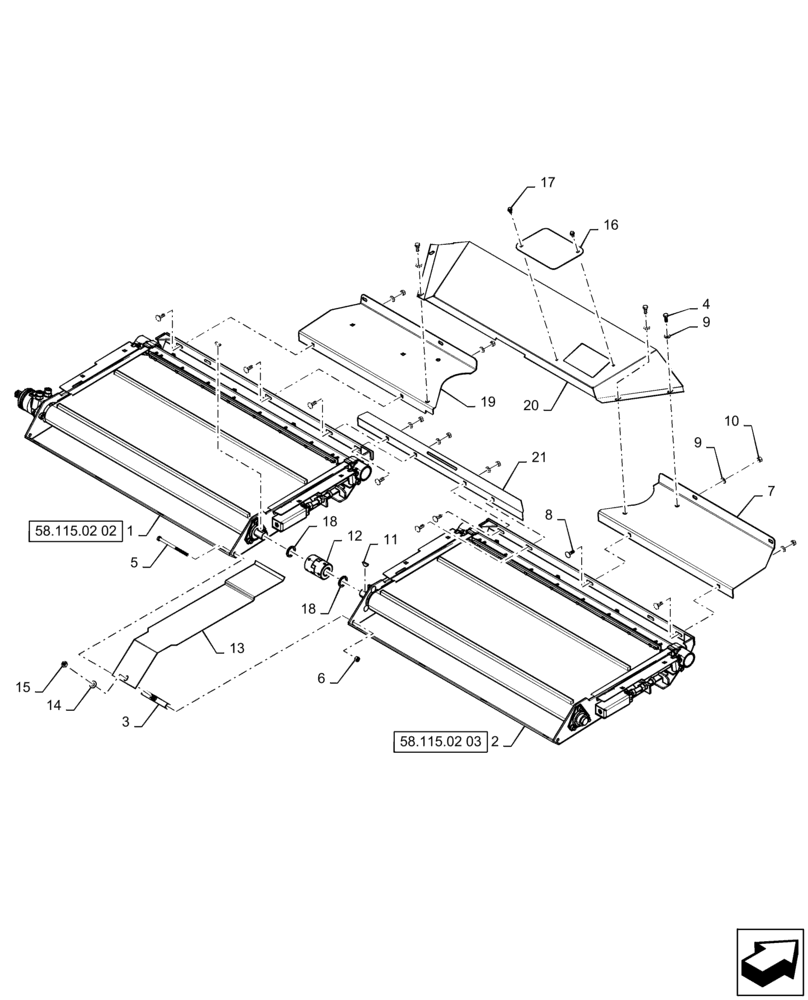

Запчасти Case IH 3152 (58.115.02[01]) - FEEDER, ASSY (58) - ATTACHMENTS/HEADERS

1

NSS

NOT SOLD SEPARAT

Feeder Assy, LH

1шт.

2

NSS

NOT SOLD SEPARAT

Feeder Assy, RH

1шт.

3

87749823

TUBE

1шт.

4

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

5

86624000

BOLT,M10 x 1.5 x 156.58mm, Cl 8.8

1шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

7

47452116

COVER

RH

1шт.

8

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

8шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

10

100016

NUT,M10 x 1.5, Cl 8

8шт.

11

80768

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

12

84249459

FLEXIBLE COUPLING

1шт.

13

84603486

SHIELD

Center

1шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

15

9706685

NUT,M12 x 1.75, Cl 8

1шт.

16

47357843

COVER

Access

1шт.

17

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

18

164995

WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk

2шт.

19

47497974

COVER

LH

1шт.

20

47497963

COVER

Infeed

1шт.

21

47452140

ANGLE

Infeed

1шт.
