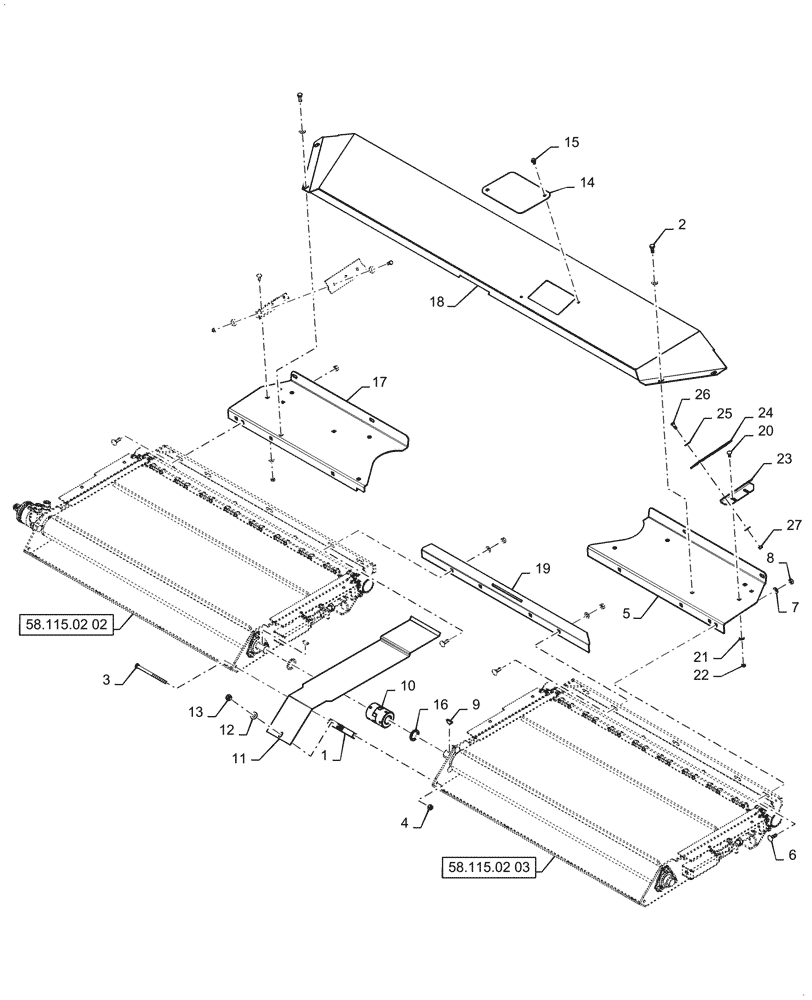

Запчасти Case IH 3152 (58.115.02[01]) - FEEDER ASSY, DUAL INFEED, ASN YHH051300 (58) - ATTACHMENTS/HEADERS

1

87749823

TUBE

1шт.

2

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

3

86624000

BOLT,M10 x 1.5 x 156.58mm, Cl 8.8

1шт.

4

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

5

47957663

COVER

RH, Drak Grey

1шт.

6

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

8шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

8

100016

NUT,M10 x 1.5, Cl 8

8шт.

9

80768

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

10

84249459

FLEXIBLE COUPLING

1шт.

11

84603486

SHIELD

1шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

13

9706685

NUT,M12 x 1.75, Cl 8

1шт.

14

47357843

COVER

Access, Dark Grey

1шт.

15

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

16

164995

WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk

2шт.

17

47957692

COVER

LH, Dark Grey

1шт.

18

47915219

COVER

Infeed, Dark Grey

1шт.

19

47452140

ANGLE

Infeed, Dark Grey

1шт.

20

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

22

9706690

NUT,M8 x 1.25, Cl 8

4шт.

23

47667172

MOUNT

Dark Grey

2шт.

24

47960422

SHIELD

2шт.

25

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

12шт.

26

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

27

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.
