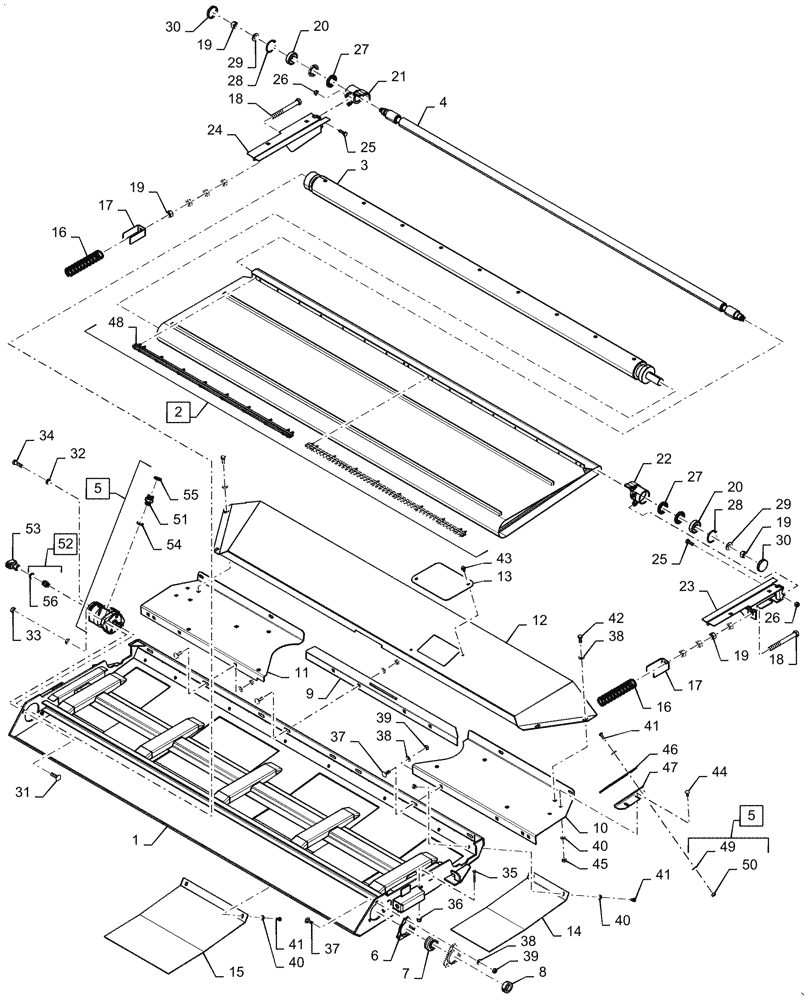

Запчасти Case IH 3152 (58.115.02[01]) - FEEDER ASSY (AUSTRALIA ONLY) (58) - ATTACHMENTS/HEADERS

1

47950584

FEEDER

Assy, Rigid

1шт.

2

48006639

DRAPER

Infeed, Incl 48

1шт.

3

48007308

ROLLER

Vulcanized

1шт.

4

47688197

SHAFT

Roller

1шт.

5

84393904

HYDRAULIC MOTOR,46CC

Incl 49 - 51

1шт.

6

87758678

FLANGE

2шт.

7

63265

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

1шт.

8

63266

COLLAR,30.187mm ID x 44.83mm OD x 16.26mm W

1шт.

9

47452140

ANGLE

Infeed

1шт.

10

47957663

COVER

RH

1шт.

11

47957692

COVER

LH

1шт.

12

47915219

COVER

Infeed

1шт.

13

47357843

COVER

Access

1шт.

14

47950475

COVER

Outer

2шт.

15

47525972

COVER

2шт.

16

84269942

TENSION SPRING

Assy

2шт.

17

84151895

RETAINER

2шт.

18

359211

BOLT,M16 x 2.0 x 150mm, Cl 8.8

2шт.

19

100020

NUT,M16 x 2.0, Cl 8

10шт.

20

84569437

BALL BEARING,25mm ID x 52.01mm OD x 15.12mm W

2шт.

21

87470513

HOUSING

LH

1шт.

22

87470515

HOUSING

RH

1шт.

23

84205242

ARM

RH

1шт.

24

84205244

ARM

LH

1шт.

25

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

26

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

27

87470518

SEAL,28.57mm ID x 51.99mm OD x 6.35mm Thk

4шт.

28

370011

CIRCLIP,M52 x 2mm Thk, Internal

2шт.

29

86632590

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

30

84190205

DUST CAP

2шт.

31

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

1шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

33

9706685

NUT,M12 x 1.75, Cl 8

1шт.

34

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

35

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

36

353308

NUT,M6 x 1.0, Cl 8

2шт.

37

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

11шт.

38

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

15шт.

39

100016

NUT,M10 x 1.5, Cl 8

11шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

41

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

14шт.

42

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

43

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

44

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

45

9706690

NUT,M8 x 1.25, Cl 8

4шт.

46

47960422

SHIELD

2шт.

47

47667172

MOUNT

2шт.

48

47955934

SLAT

Connector Kit

1шт.

49

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

12шт.

50

86629542

NUT,M8 x 1.25, Cl 8.8

6шт.

51

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 54, 55

2шт.

52

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 56

1шт.

53

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

1шт.

54

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

55

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

56

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
