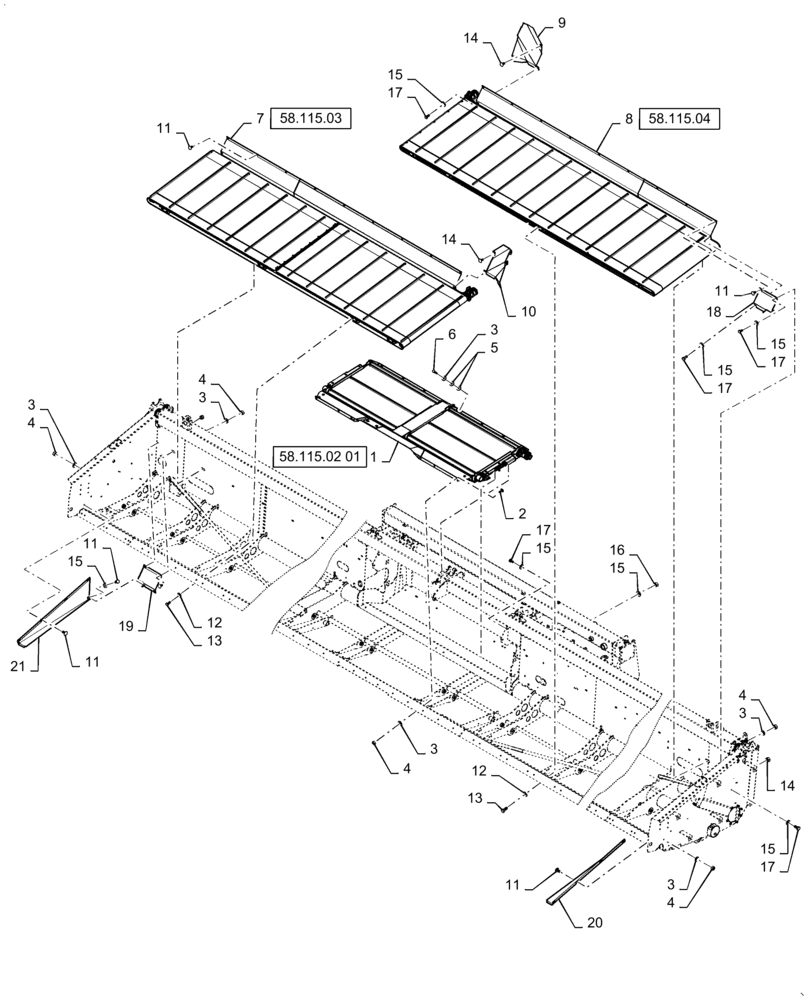

Запчасти Case IH 3152 (58.115.01) - DRAPER, ASSY, 35FT (58) - ATTACHMENTS/HEADERS

1

84289440

FEEDER

Assy

1шт.

2

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

6шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

40шт.

4

100016

NUT,M10 x 1.5, Cl 8

32шт.

5

394629

WASHER,10.5mm ID x 24mm OD x 3mm Thk

16шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

8шт.

7

NSS

NOT SOLD SEPARAT

Tensioner, Assy, RH

1шт.

8

NSS

NOT SOLD SEPARAT

Tnesioner, Assy, LH

1шт.

9

47434685

SHIELD

LH

1шт.

10

47434686

SHIELD

RH

1шт.

11

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

26шт.

12

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

16шт.

13

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

16шт.

14

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

16

9706690

NUT,M8 x 1.25, Cl 8

4шт.

17

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

14шт.

18

84365909

SHIELD

LH

1шт.

19

84365910

SHIELD

RH

1шт.

20

84365435

SHIELD

LH

1шт.

21

84365436

SHIELD

RH

1шт.
