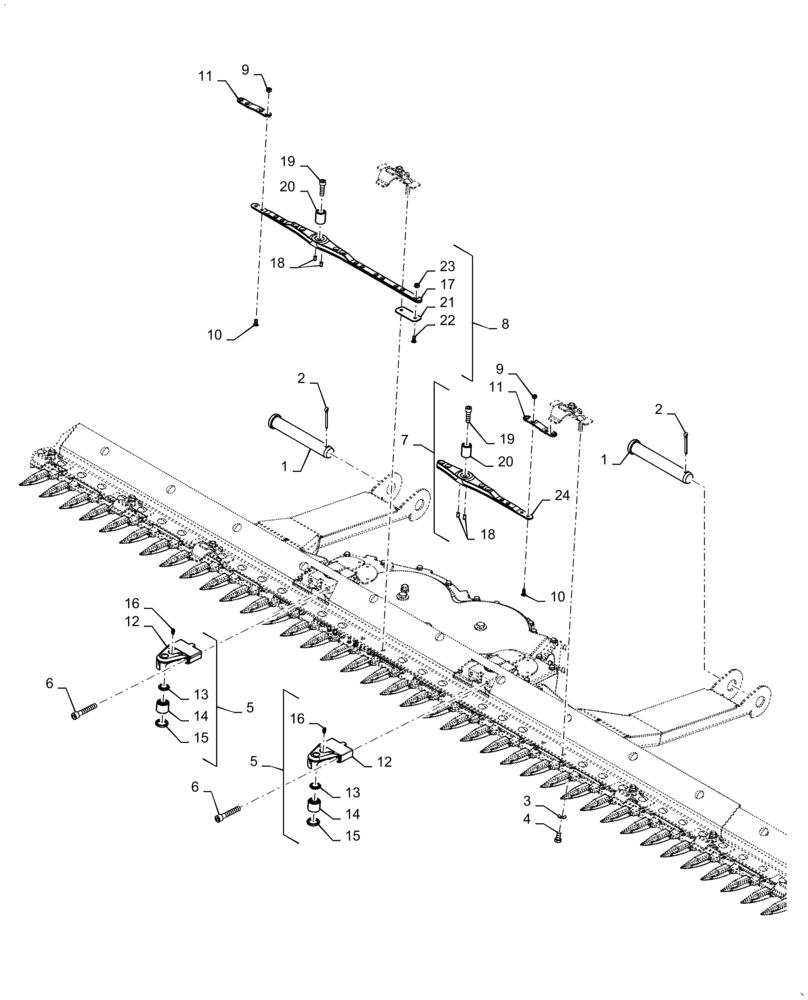

Запчасти Case IH 3152 (58.110.18[02]) - KNIFE HEAD, ASSY EU, 3" TRASHBAR GUARD 45FT (58) - ATTACHMENTS/HEADERS

1

87546416

PIN,31.65mm OD x 215mm L

Assy

2шт.

2

733-6350

COTTER PIN,M6.3 x 50

2шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

60шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

5

47522045

ARM

Assy

2шт.

6

84319918

HEX SOC SCREW,M12 x 1.75 x 70mm, Cl 10.9

4шт.

7

47416964

KNIFE ASSY

LH

1шт.

8

47416963

KNIFE HEAD

RH, Assy

1шт.

9

84429102

LOCK NUT

Wheel

25шт.

10

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

Knife Section

5шт.

11

84423401

STRAP

Reinforcing Knife

2шт.

12

47522044

ARM

1шт.

13

84370960

SPACER

1шт.

14

5138952

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 26mm W

1шт.

15

47522042

OIL SEAL

1шт.

16

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

17

84318561

KNIFE HEAD

RH

1шт.

18

64780

DOWEL,1/4" x 1/2", HDN

4шт.

19

86566100

HEX SOC SCREW,M10 x 35mm, Cl 12.9, Full Thd

2шт.

20

47415563

PIN,25mm OD x 32.5mm L

2шт.

21

47415343

PLATE

1шт.

22

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

1шт.

23

84429102

LOCK NUT

1шт.

24

84318560

KNIFE HEAD

LH

1шт.
