Запчасти Case IH 3152 (58.110.18[01]) - CUTTERBAR, ASSY EU, 3" TRASHBAR GUARD 45FT (58) - ATTACHMENTS/HEADERS

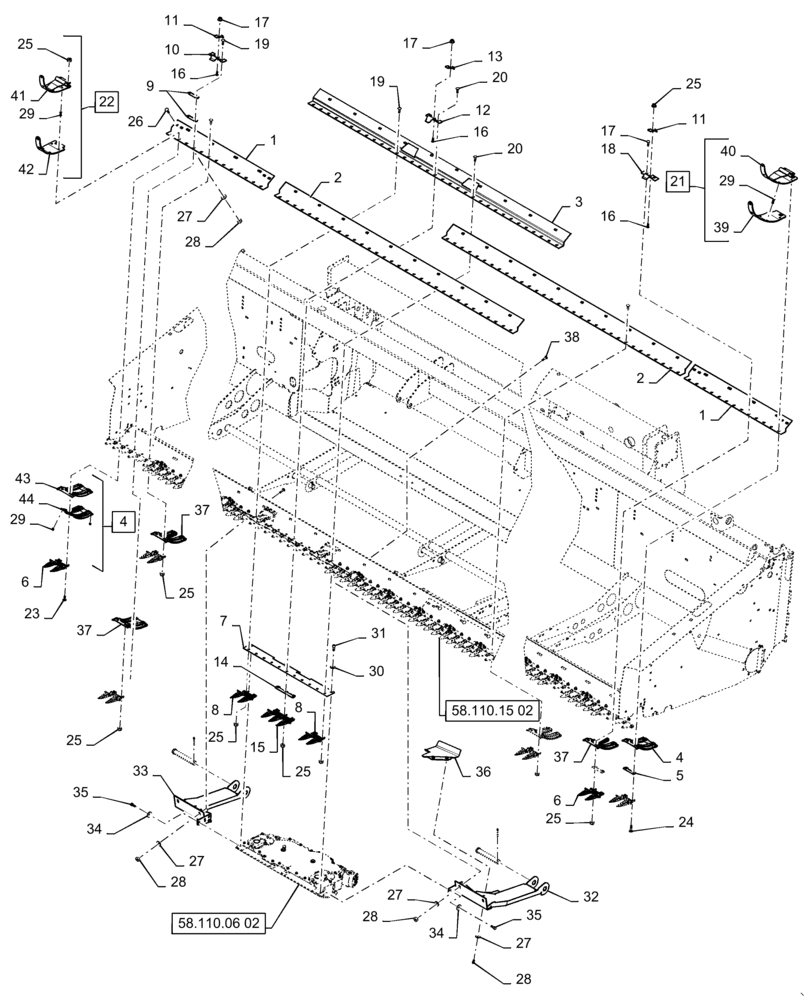

Схема запчастей Case IH 3152 - (58.110.18[01]) - CUTTERBAR, ASSY EU, 3" TRASHBAR GUARD 45FT (58) - ATTACHMENTS/HEADERS
20
27
25
28
3
34
37
11
33
34
31
28
16
14
40
6
20
27
7
17
44
28
1
10
42
2
2
11
25
28
1
29
18
41
25
19
9
25
24
29
36
12
27
43
15
37
25
25
23
39
4
17
58.110.15 02
16
19
17
32
30
13
29
22
6
8
26
4
5
16
58.110.06 02
27
37
25
21
38
8
35
35

Артикул

Название

Примечание

Количество

1

47695886

CUTTERBAR

45FT, Outer

2шт.

2

47695858

CUTTERBAR

Outer

4шт.

3

47695848

CUTTERBAR

Center

1шт.

4

NSS

NOT SOLD SEPARAT

Incl 29, 43, 44

78шт.

5

84396061

SHIM,31mm OD x 3.25mm Thk

Knife Guard

45шт.

6

47985764

Knife Guard HT 3in

GUARD

86шт.

7

84325448

MOUNTING PLATE

1шт.

8

47506883

GUARD

4шт.

8

47682280

GUARD

Knife 3", Trashbar Gurad, EU, Start Serial: YEH042400

4шт.

9

482769

SHIM,25mm OD x 0.59mm Thk

42шт.

10

86630786

KNIFE CLIP,Heat Treated

20шт.

11

86630787

KNIFE CLIP

Press Bar

40шт.

12

84422134

KNIFE CLIP

High

3шт.

13

84422992

ADJUSTING PLATE

3шт.

14

84384773

SHIM,31mm OD x 3.25mm Thk

Knife Guard

1шт.

15

47506882

GUARD

1шт.

15

47695047

GUARD

Knife, 3-Point, Trashbar Gurad, EU, Start Serial: YEH042400

1шт.

16

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

43шт.

17

86619802

FLANGE NUT,M10 x 1.5, Cl 8

43шт.

18

84184577

KNIFE CLIP

20шт.

19

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

88шт.

20

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

91шт.

21

NSS

NOT SOLD SEPARAT

LH, Incl 29, 39, 40

1шт.

22

NSS

NOT SOLD SEPARAT

Shoe Assy, Incl 29, 41, 42

1шт.

23

86512425

CARRIAGE BOLT,Sq Nk, M10 x 45mm, Cl 8.8

2шт.

24

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

2шт.

25

100037

LOCK NUT,M10 x 1.5, Cl 8

183шт.

26

86512422

CARRIAGE BOLT,Sq Nk, M10 x 20mm, Cl 8.8, Full Thd

56шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

60шт.

28

100016

NUT,M10 x 1.5, Cl 8

58шт.

29

87613322

POP RIVET,Pop, 6.35mm OD x 15.75mm L

12шт.

30

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

4шт.

31

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

4шт.

32

47461807

ARM

LH

1шт.

33

47461804

ARM

RH

1шт.

34

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

35

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

36

84418960

SHIELD

1шт.

37

47487552

SKID/SHOE

Assy

8шт.

38

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

39

84346388

SKID/SHOE

LH

1шт.

40

84346387

SKID/SHOE

LH

1шт.

41

84337069

SKID/SHOE

RH

1шт.

42

84337990

SKID/SHOE

RH

1шт.

43

251206A2

SHOE

Skid

1шт.

44

377580A1

SKID/SHOE

Single

1шт.

Выбрано товаров: 46
