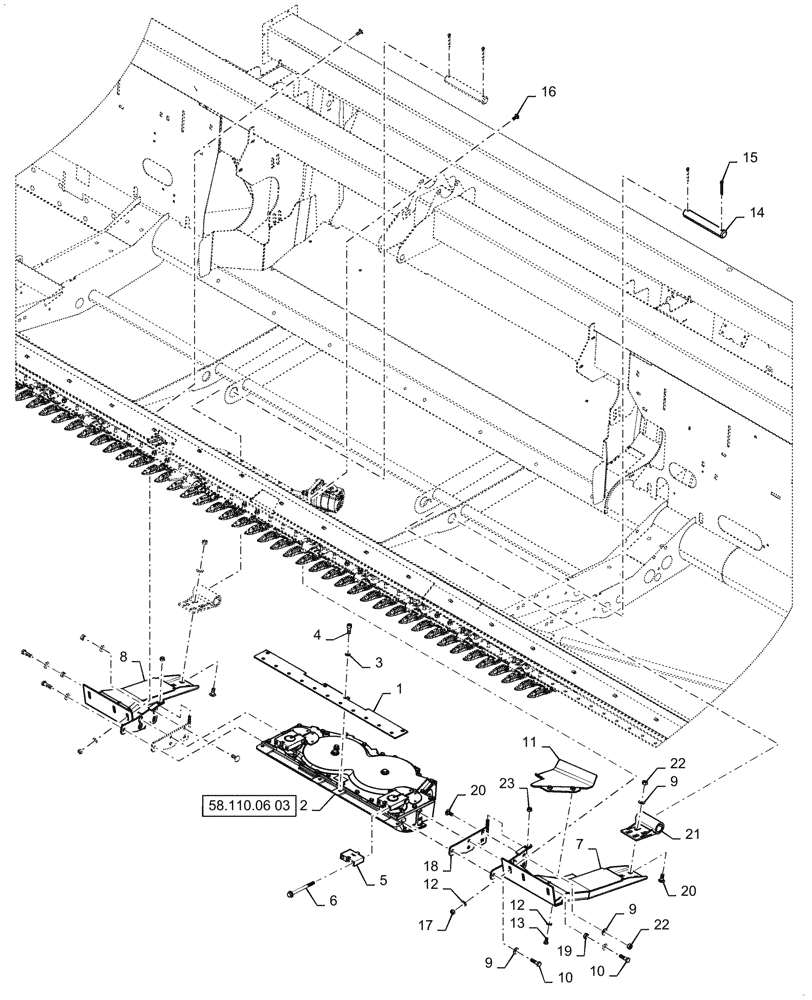

Запчасти Case IH 3152 (58.110.09[03]) - CUTTERBAR ASSY, COMMON, RIGID, ASN YHH051300 (58) - ATTACHMENTS/HEADERS

1

48094535

PLATE

Mounting, Dark Grey

1шт.

2

47933752

GEARBOX

Center Knife Assy

1шт.

2

47933752C

CORE-GEARBOX

Core

1шт.

2

47933752R

REMAN-GEARBOX

Reman

1шт.

3

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

4шт.

4

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

4шт.

5

48051841

ARM

Knife, Black, Rigid

2шт.

6

84606847

FLANGE BOLT,Hex, M12 x 136mm, Cl 10.9

4шт.

7

48091740

ARM

LH Dark Grey

1шт.

8

48091737

ARM

RH Dark Grey

1шт.

9

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

18шт.

10

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

6шт.

11

84418960

SHIELD

Motor, Dark Grey

1шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

14

48049943

PIN

Clevis

2шт.

15

733-6350

COTTER PIN,M6.3 x 50

4шт.

16

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

17

100016

NUT,M10 x 1.5, Cl 8

2шт.

18

48091557

PLATE

Dark Grey

2шт.

19

48112870

SPACER

4шт.

20

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

12шт.

21

48090616

HUB

Dark Grey

2шт.

22

9706685

NUT,M12 x 1.75, Cl 8

12шт.

23

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.
