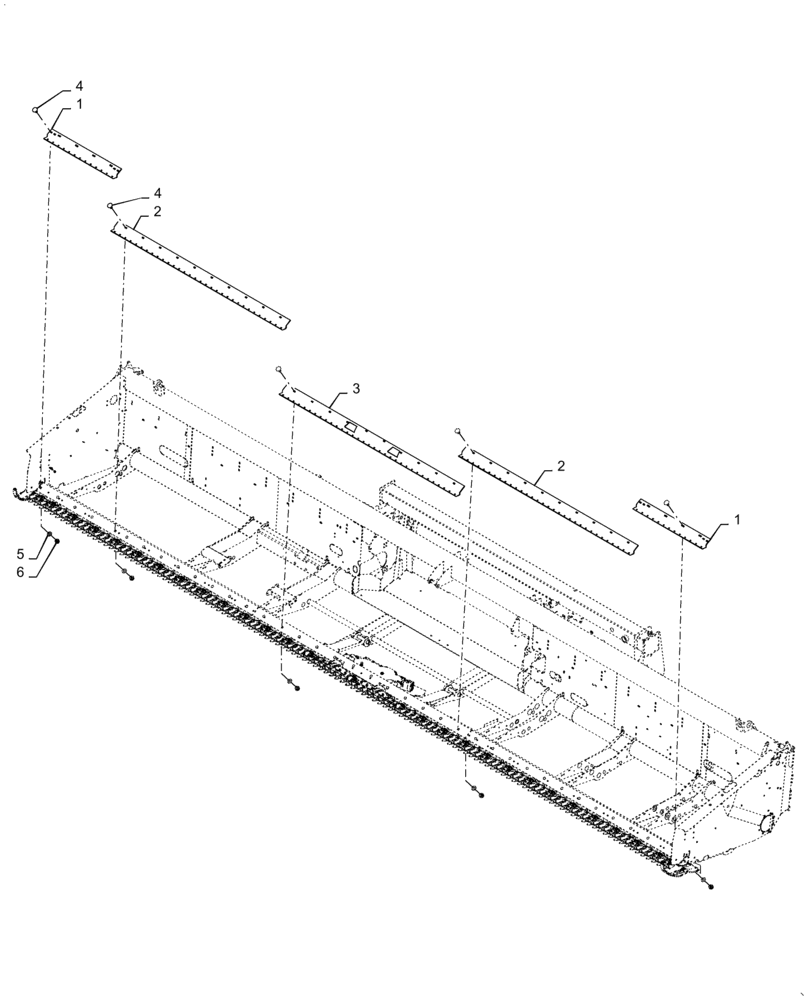

Запчасти Case IH 3152 (58.110.09[02]) - CUTTERBAR, 3" STD GUARD 30FT (58) - ATTACHMENTS/HEADERS

1

84606935

CUTTERBAR

30FT End

2шт.

2

47393793

CUTTERBAR

Outer

2шт.

3

84606802

CUTTERBAR

Center

1шт.

4

86512422

CARRIAGE BOLT,Sq Nk, M10 x 20mm, Cl 8.8, Full Thd

38шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

42шт.

6

100016

NUT,M10 x 1.5, Cl 8

40шт.
