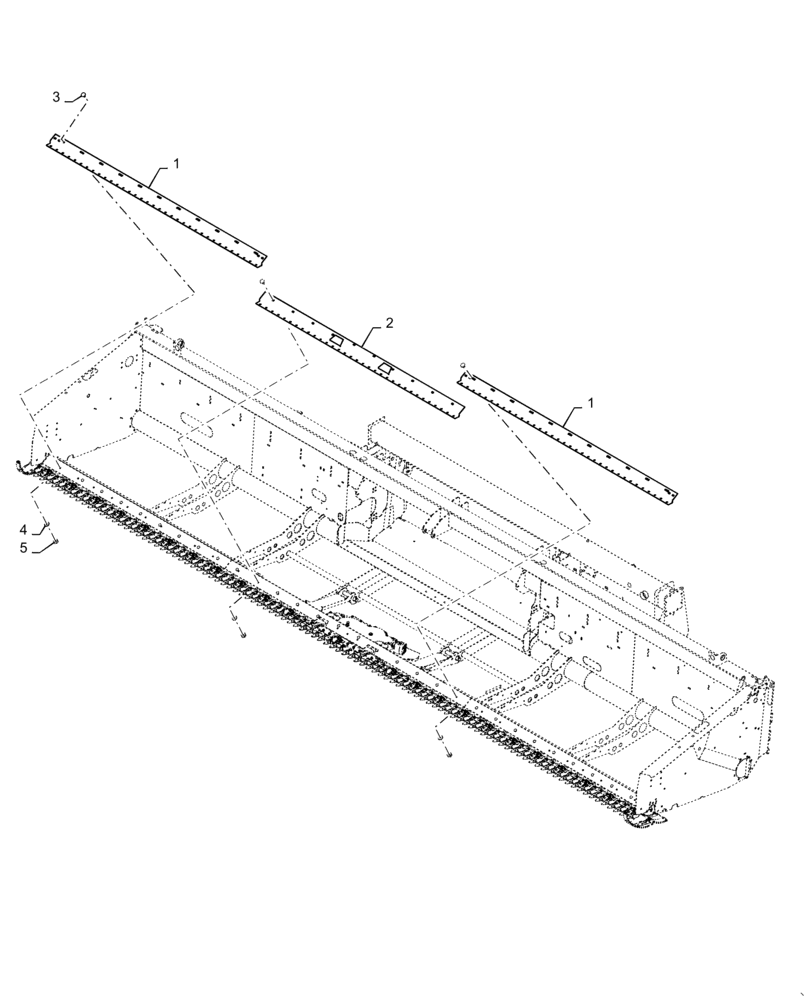

Запчасти Case IH 3152 (58.110.09[02]) - CUTTERBAR, 3" STD GUARD 25FT (58) - ATTACHMENTS/HEADERS

1

84606778

CUTTERBAR

25FT, Outer

2шт.

2

84606802

CUTTERBAR

Center

1шт.

3

86512422

CARRIAGE BOLT,Sq Nk, M10 x 20mm, Cl 8.8, Full Thd

32шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

36шт.

5

100016

NUT,M10 x 1.5, Cl 8

34шт.
