Запчасти Case IH 3152 (58.110.09[01]) - CUTTERBAR, 3" STD GUARD 25FT (58) - ATTACHMENTS/HEADERS

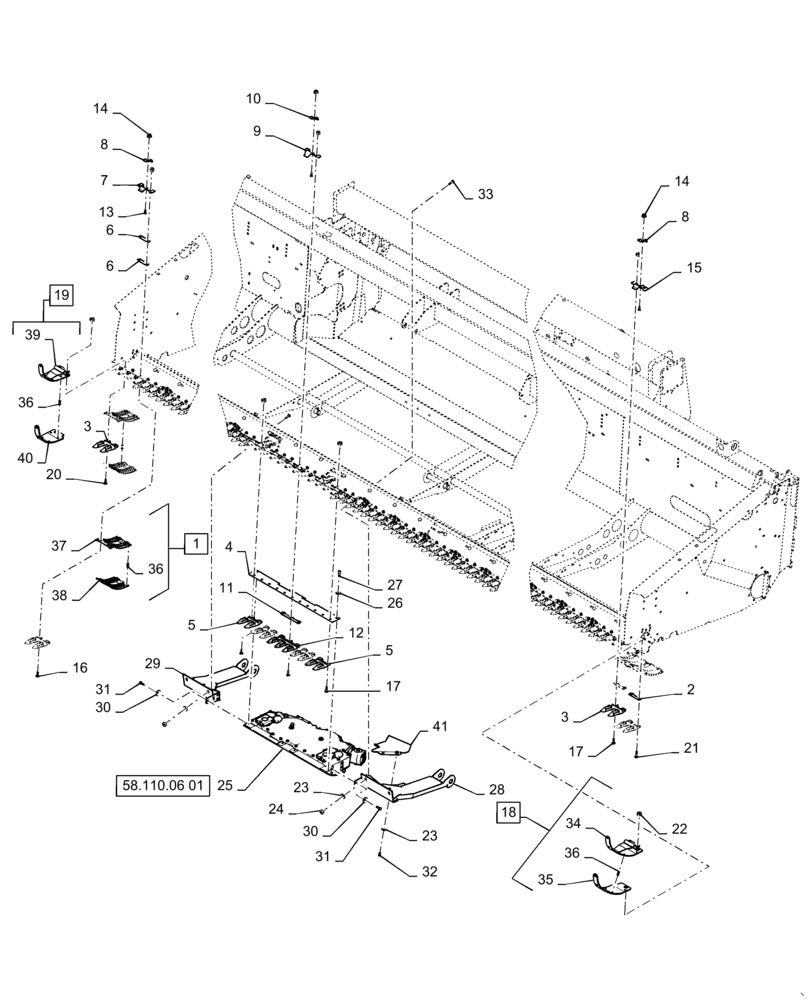

Схема запчастей Case IH 3152 - (58.110.09[01]) - CUTTERBAR, 3" STD GUARD 25FT (58) - ATTACHMENTS/HEADERS
20
2
32
10
28
16
3
11
41
35
30
23
27
5
39
15
23
19
31
4
17
21
25
8
31
6
12
18
30
36
7
37
14
29
14
22
24
34
36
17
6
40
1
36
38
3
9
33
13
5
58.110.06 01
8
26

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Shoe Assy, Incl 36, 37, 38

38шт.

2

84396061

SHIM,31mm OD x 3.25mm Thk

Knife Guard

25шт.

3

87702973

GUARD

HT, Knife 3"

46шт.

4

84325448

MOUNTING PLATE

1шт.

5

47506883

GUARD

HT, Knife 3"

4шт.

6

482769

SHIM,25mm OD x 0.59mm Thk

Adjusting

20шт.

7

86630786

KNIFE CLIP,Heat Treated

10шт.

8

86630787

KNIFE CLIP

Press Bar

20шт.

9

84422134

KNIFE CLIP

High

3шт.

10

84422992

ADJUSTING PLATE

3шт.

11

84384773

SHIM,31mm OD x 3.25mm Thk

Knife Guard

1шт.

12

47506882

GUARD

Knife 3 Point

1шт.

13

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

23шт.

14

86619802

FLANGE NUT,M10 x 1.5, Cl 8

23шт.

15

84184577

KNIFE CLIP

Semi Fin

10шт.

16

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

48шт.

17

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

51шт.

18

NSS

NOT SOLD SEPARAT

Shoe Assy, LH, Incl 34, 35, 36

1шт.

19

NSS

NOT SOLD SEPARAT

Shoe Assy, Incl 36, 39, 40

1шт.

20

86512425

CARRIAGE BOLT,Sq Nk, M10 x 45mm, Cl 8.8

2шт.

21

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

2шт.

22

100037

LOCK NUT,M10 x 1.5, Cl 8

103шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

36шт.

24

100016

NUT,M10 x 1.5, Cl 8

34шт.

25

47709322

GEARBOX

Drive Assembly, Center Knife

1шт.

25

47709322R

REMAN-GEARBOX

Drive Assembly, Center Knife

1шт.

25

47709322C

CORE-GEARBOX

Return Number

1шт.

26

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

4шт.

27

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

4шт.

28

47461807

ARM

LH

1шт.

29

47461804

ARM

RH

1шт.

30

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

31

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

32

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

33

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

34

84346387

SKID/SHOE

LH

1шт.

35

84346388

SKID/SHOE

LH

1шт.

36

87613322

POP RIVET,Pop, 6.35mm OD x 15.75mm L

17шт.

37

251206A2

SHOE

Skid

1шт.

38

377580A1

SKID/SHOE

Polyskid Single

1шт.

39

84337069

SKID/SHOE

RH

1шт.

40

84337990

SKID/SHOE

RH

1шт.

41

84418960

SHIELD

Motor, Serial Range: -YEH049999

1шт.

41

47690260

SHIELD

Motor, Start Serial: YEH050000

1шт.

Выбрано товаров: 44
