Запчасти Case IH 3152 (58.110.06[01]) - DRIVE, CENTER KNIFE GEARBOX (58) - ATTACHMENTS/HEADERS

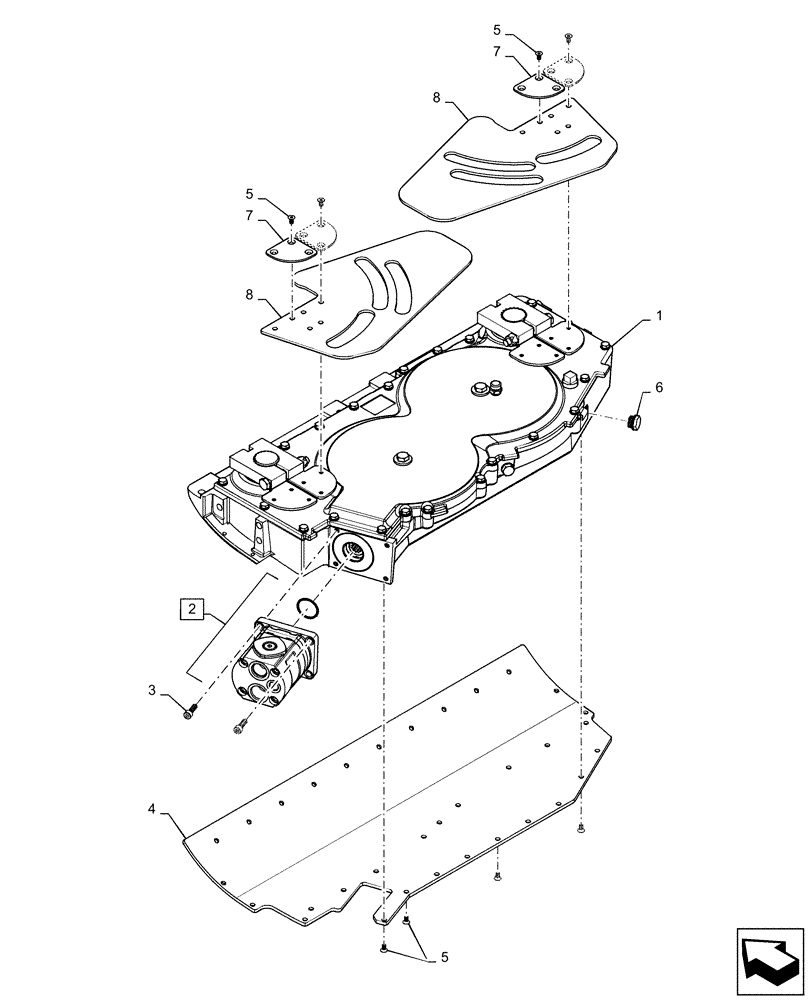

Схема запчастей Case IH 3152 - (58.110.06[01]) - DRIVE, CENTER KNIFE GEARBOX (58) - ATTACHMENTS/HEADERS
8
5
7
1
7
6
2
4
5
3
5
8

Артикул

Название

Примечание

Количество

1

47661907

GEARBOX

Drive Assy, Center Knife, Start Serial: YEH040000

1шт.

1

47709322

GEARBOX

Drive Assy, Center Knife, Serial Range: -YEH039999

1шт.

1

84310829R

REMAN-GEARBOX

Drive Assy, Center Knife

1шт.

1

84310829C

CORE-GEARBOX

Return Number

1шт.

2

87485437

HYDRAULIC MOTOR,GEAR, 20.12 CC

1шт.

2

84369985

SEAL KIT

1шт.

2

14454480

O-RING,1.301" ID x 0.07" Width

1шт.

3

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

4шт.

4

84323064

SKID PLATE

Plastic

1шт.

4

84565253

SKID PLATE

Stainless Steel

1шт.

5

14441231

HEX SOC SCREW,Flat Csk Hd, M6 x 12mm, Cl 10.9

45шт.

6

87524452

SIGHTGLASS

1шт.

7

84567273

BRACKET

4шт.

8

47442020

FLAP

Flex Header, Used From 10/20/2012 To 12/18/2012

2шт.

8

47483570

FLAP

Flex Header, Used From 12/18/2012 To 05/23/2013

2шт.

8

47553645

FLAP

Flex Header, Used From 5/23/2013 To 03/09/2015

2шт.

8

47825829

FLAP

RH, Flex Header, Used From 03/09/2015 and Up

1шт.

8

47825828

FLAP

LH, Flex Header, Used From 03/09/2015 and Up

1шт.

9

48049923

DECAL

Applies To 47933752 Gearbox

1шт.

Выбрано товаров: 19
