Запчасти Case IH 3152 (58.110.05[01]) - CUTTERBAR, 3 INCH STANDARD GAURD (58) - ATTACHMENTS/HEADERS

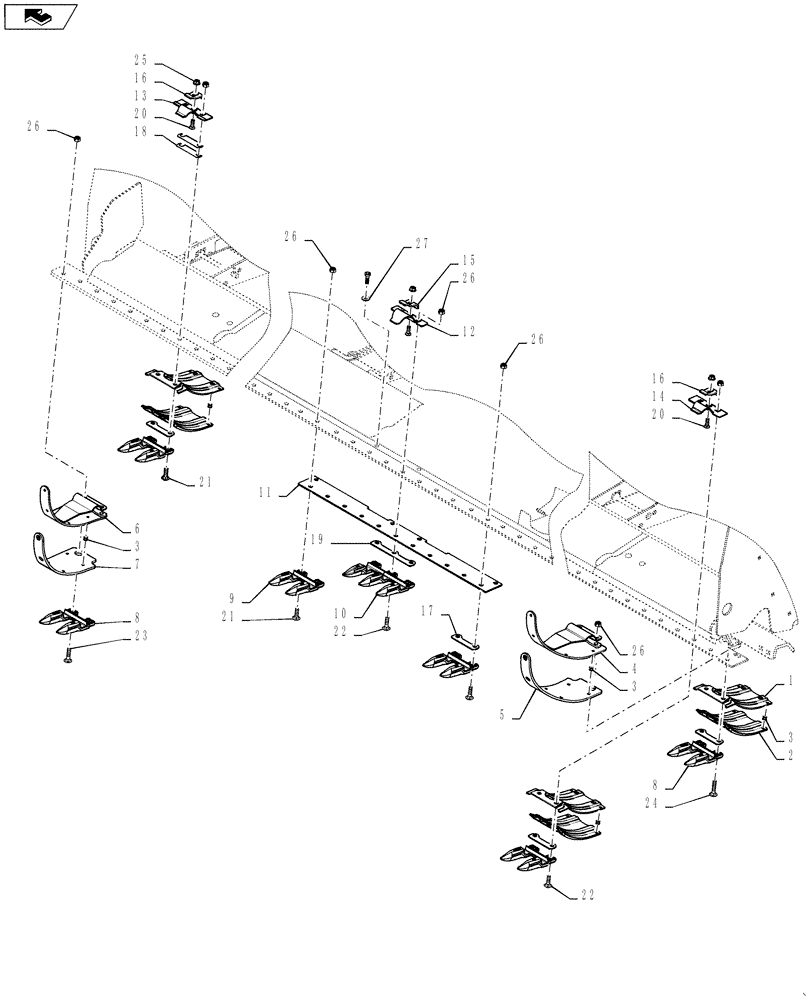

Схема запчастей Case IH 3152 - (58.110.05[01]) - CUTTERBAR, 3 INCH STANDARD GAURD (58) - ATTACHMENTS/HEADERS
26
22
3
8
21
9
26
1
8
23
14
20
16
home
25
16
4
18
26
5
19
26
22
26
10
17
13
3
3
11
21
20
15
7
12
2
27
6
24

Артикул

Название

Примечание

Количество

1

251206A2

SHOE

Skid, 30 Foot Header

44шт.

1

251206A2

SHOE

Skid, 35 Foot Header

52шт.

1

251206A1

SHOE

Skid, 40 Foot Header

60шт.

1

251206A1

SHOE

Skid, 45 Foot Header

68шт.

2

377580A1

SKID/SHOE

Polyskid Single Skid, 30 Foot Header

46шт.

2

377580A1

SKID/SHOE

Polyskid Single Skid, 35 Foot Header

52шт.

2

377580A1

SKID/SHOE

Polyskid Single Skid, 40 Foot Header

60шт.

2

377580A1

SKID/SHOE

Polyskid Single Skid, 45 Foot Header

68шт.

3

87613322

POP RIVET,Pop, 6.35mm OD x 15.75mm L

30 Foot Header

242шт.

3

87613322

POP RIVET,Pop, 6.35mm OD x 15.75mm L

35 Foot Header

272шт.

3

87613322

POP RIVET,Pop, 6.35mm OD x 15.75mm L

40 Foot Header

312шт.

3

87613322

POP RIVET,Pop, 6.35mm OD x 15.75mm L

45 Foot Header

352шт.

4

84346387

SKID/SHOE

Left Hand

1шт.

5

84346388

SKID/SHOE

Left Hand

1шт.

6

84337069

SKID/SHOE

Right Hand

1шт.

7

84337990

SKID/SHOE

Right Hand

1шт.

8

87702973

GUARD

Knife 3 Inch, 30 Foot Header

56шт.

8

87702973

GUARD

Knife 3 Inch, 35 Foot Header

66шт.

8

87702973

GUARD

Knife 3 Inch, 40 Foot Header

76шт.

8

87702973

GUARD

Knife 3 Inch, 45 Foot Header

86шт.

9

47506883

GUARD

Knife 3 Inch

4шт.

10

47506882

GUARD

Guard, 3 Point

1шт.

11

84325448

MOUNTING PLATE

1шт.

12

84422134

KNIFE CLIP

Center

3шт.

13

86630786

KNIFE CLIP,Heat Treated

RH, 30 Foot Header

13шт.

13

86630786

KNIFE CLIP,Heat Treated

RH, 35 Foot Header

15шт.

13

86630786

KNIFE CLIP,Heat Treated

RH, 40 Foot Header

18шт.

13

86630786

KNIFE CLIP,Heat Treated

RH, 45 Foot Header

19шт.

14

84184577

KNIFE CLIP

LH, 30 Foot Header

13шт.

14

84184577

KNIFE CLIP

LH, 35 Foot Header

15шт.

14

84184577

KNIFE CLIP

LH, 40 Foot Header

18шт.

14

84184577

KNIFE CLIP

LH, 45 Foot Header

19шт.

15

84422992

ADJUSTING PLATE

3шт.

16

86630787

KNIFE CLIP

Press Bar, 30 Foot Header

26шт.

16

86630787

KNIFE CLIP

Press Bar, 35 Foot Header

30шт.

16

86630787

KNIFE CLIP

Press Bar, 40 Foot Header

36шт.

16

86630787

KNIFE CLIP

Press Bar, 45 Foot Header

38шт.

17

84396061

SHIM,31mm OD x 3.25mm Thk

Knife Guard, 30 Foot Header

30шт.

17

84396061

SHIM,31mm OD x 3.25mm Thk

Knife Guard, 35 Foot Header

35шт.

17

84396061

SHIM,31mm OD x 3.25mm Thk

Knife Guard, 40 Foot Header

40шт.

17

84396061

SHIM,31mm OD x 3.25mm Thk

Knife Guard, 45 Foot Header

45шт.

18

482769

SHIM,25mm OD x 0.59mm Thk

Adjusting Plate, 30 Foot Header

26шт.

18

482769

SHIM,25mm OD x 0.59mm Thk

Adjusting Plate, 35 Foot Header

31шт.

18

482769

SHIM,25mm OD x 0.59mm Thk

Adjusting Plate, 40 Foot Header

36шт.

18

482769

SHIM,25mm OD x 0.59mm Thk

Adjusting Plate, 45 Foot Header

40шт.

19

84384773

SHIM,31mm OD x 3.25mm Thk

1шт.

20

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

30 Foot Header

29шт.

20

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

35 Foot Header

33шт.

20

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

40 Foot Header

37шт.

20

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

45 Foot Header

41шт.

21

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

30 Foot Header

58шт.

21

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

35 Foot Header

68шт.

21

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

40 Foot Header

78шт.

21

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

45 Foot Header

88шт.

22

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

30 Foot Header

61шт.

22

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

35 Foot Header

71шт.

22

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

40 Foot Header

81шт.

22

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

45 Foot Header

91шт.

23

86512425

CARRIAGE BOLT,Sq Nk, M10 x 45mm, Cl 8.8

2шт.

24

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

2шт.

25

86619802

FLANGE NUT,M10 x 1.5, Cl 8

30 Foot Header

29шт.

25

86619802

FLANGE NUT,M10 x 1.5, Cl 8

35 Foot Header

33шт.

25

86619802

FLANGE NUT,M10 x 1.5, Cl 8

40 Foot Header

39шт.

25

86619802

FLANGE NUT,M10 x 1.5, Cl 8

45 Foot Header

41шт.

26

100037

LOCK NUT,M10 x 1.5, Cl 8

30 Foot Header

123шт.

26

100037

LOCK NUT,M10 x 1.5, Cl 8

35 Foot Header

143шт.

26

100037

LOCK NUT,M10 x 1.5, Cl 8

40 Foot Header

163шт.

26

100037

LOCK NUT,M10 x 1.5, Cl 8

45 Foot Header

183шт.

27

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

4шт.

Выбрано товаров: 69
