Запчасти Case IH 2162 (09-20) - DRAPER DRIVE HYDRAULICS, MANUAL DECK SHIFT, 2142, 2152

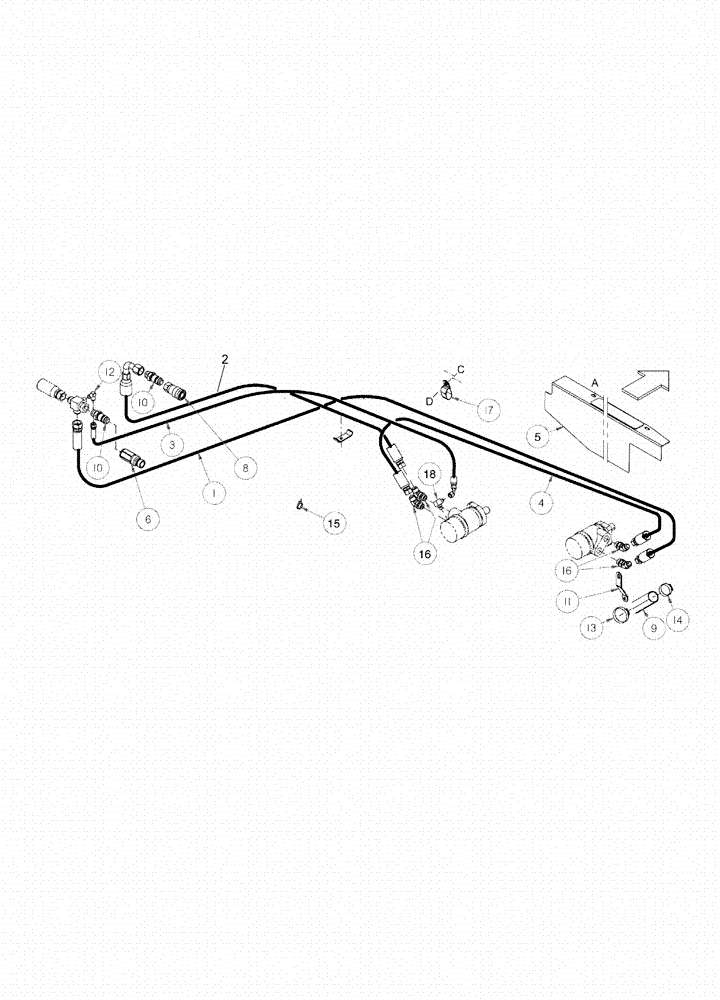

Схема запчастей Case IH 2162 - (09-20) - DRAPER DRIVE HYDRAULICS, MANUAL DECK SHIFT, 2142, 2152
d
3
c
4
17
18
5
a
6
12
15
10
8
13
16
1
2
9
14
10
16
11

Артикул

Название

Примечание

Количество

1

87565697

HOSE ASSY.

1шт.

20.0, 25.0, 30.0, 35.0, 40.0, And 45.0 Foot Headers

1шт.

2

87565686

HOSE ASSY.

1шт.

20.0, 25.0, 30.0, 35.0, 40.0, And 45.0 Foot Headers

1шт.

3

87565685

HOSE ASSY.

1шт.

2152 Only

1шт.

45.0 Foot Header

1шт.

3

87752665

HOSE,6.35mm ID x 2350mm L, SAE 100R17

1шт.

20.0, 25.0, 30.0, 35.0, And 40.0 Foot Headers

1шт.

4

87565703

HOSE ASSY.

1шт.

5

87561124

HOLDER

Hose

1шт.

20.0, 25.0, 30.0, 35.0, 40.0, And 45.0 Foot Headers

1шт.

5

87561127

HOLDER

Hose, Right Center

1шт.

2152 Only

1шт.

25.0, 30.0, 35.0, And 40.0 Foot Headers

1шт.

5

87561125

HOLDER

Hose, Left Center

1шт.

2152 Only

1шт.

25.0, 30.0, 35.0, And 40.0 Foot Headers

1шт.

6

87605745

QUICK MALE COUPLING

Return

1шт.

Reference 6 And 8 Are Optional For Combines, When Ordering For 2006 Header And Older, Also Order Reference 10.

1шт.

8

87472038

FITTING

Pressure

1шт.

Reference 6 And 8 Are Optional For Combines, When Ordering For 2006 Header And Older, Also Order Reference 10.

1шт.

9

87561552

SLEEVE

Protector, Hoses

1шт.

10

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

11

87561121

HOLDER

Hose

1шт.

12

241074

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

Single Knife Header

1шт.

13

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

1шт.

14

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

15

1336064C1

CABLE TIE

CABLE STRAP Hoses

1шт.

16

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

4шт.

17

338322A1

CLIP

Hose

3шт.

18

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

a

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

c

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

d

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.
