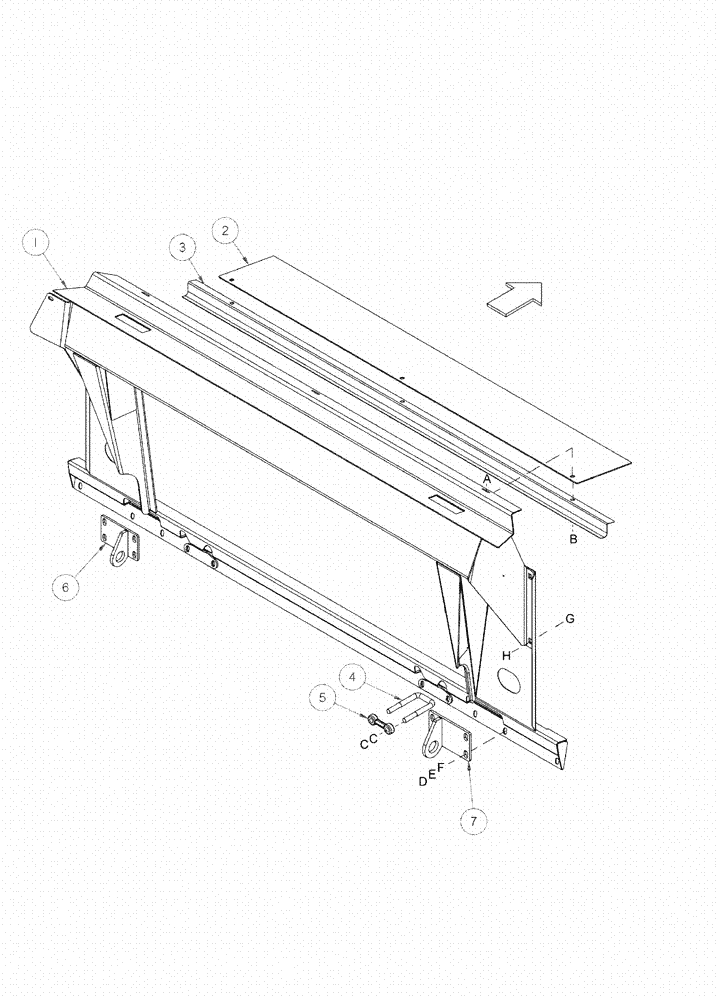

Запчасти Case IH 2152 (09-67) - CASE 2X00 ADAPTER COMPLETION

1

87597430

FRAME

Transition

1шт.

2

87597417

COVER ASSY

Adapter/Header Opening

1шт.

3

87597416

COVER ASSY

Hose

1шт.

4

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

2шт.

5

1307371C1

LATCH

2шт.

6

87597354

BRACKET

Lock, Left Hand

1шт.

7

87597355

BRACKET

Lock, Right Hand

1шт.

8

87752649

MOLDING

Hose Protector, 70 mm Long (Not Shown)

2шт.

a

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

b

87034814

FLANGE NUT,Flg, 5/16"-18

1шт.

c

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

d

363092A1

BOLT

1шт.

e

492-11050

LOCK WASHER,1/2"

1шт.

f

495-21056

WASHER,1/2"

1шт.

g

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

1шт.

h

87323841

FLANGE NUT

1шт.
